MagicCleaner
Stainless steel: Optimally rework TIG welds and surfaces
Please choose your desired product.
Technical Data
General Data
| Mains voltage | 230V |
|---|---|
| Welding current max. | 14 A |
| Open-circuit voltage | 30 V |
| Degree of protection | IP23 |
| Dimension / length | 365 mm |
| Dimension / width | 130 mm |
| Dimension / height | 285 mm |
| Weight | 4,5 kg |
Full flexibility
Cleaning and passivation in a single working step
Our MagicCleaner allows you to clean and passivate TIG weld seams and stainless steel surfaces in a single step.
Cost-effective electrolyte consumption
Whether using the tube screwed onto the cleaning torch orthe included 1.8 l tank (MC300), electrolyte consumptioncan be precisely delivered in a sustainable and resource conserving manner.
Ready for use in max. 3 steps
Set-up is quick and easy. All important parameters (operating mode, cleaning performance, electrolyte dosing) are adjustable on the easy-access front panel.
Innovative inverter technology
Our inverter technology ensures reduced power consumption for the same output power, resulting in advice that is both energy-efficient and lightweight.Before / after
One device, three functions
Clean, polish, print
Clean and passivate in one step. MagicCleaner is the most advanced system for electrochemical cleaning units. With one machine, you can clean, polish, and inscribe stainless steel. Remove post-weld temper colouration and restore the protective passive layer at the same time.
After cleaning, the polishing process ensures a consistently lustrous surface and improves the steel passivation process. In addition, the MagicCleaner provides the option to permanently inscribe stainless steel surfaces - the perfect alternative to stickers or laser engraving.
Innovative technology
1. Cleaning
The electrochemical cleaning process uses alternating current (AC) and electrolyte fluid to remove post-weld temper colouration and perform passivation.
2. Polishing
Electrochemical polishing removes some of the base material from the workpiece and lightens surface colouration. This results in a consistent lustre after cleaning, providing an improved passivation process.
3. Printing
Permanently inscribe stainless steel with company logos, item numbers, barcodes, etc. Alternating current (AC) is used for black printing and direct current (DC) for white printing - the perfect alternative to stickers or laser engraving.

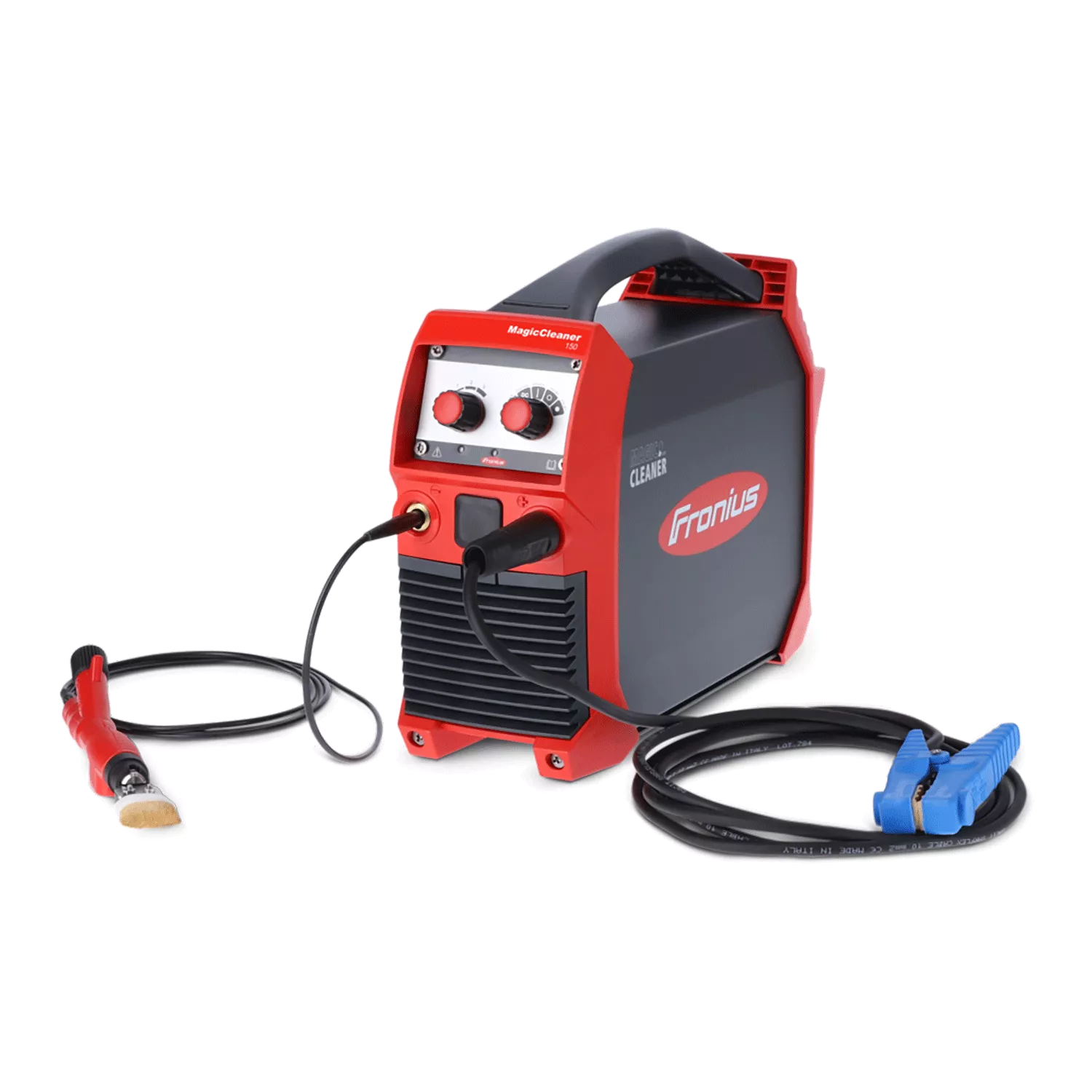

MagicCleaner 150
Ready to use in 2 steps and extremely lightweight at just under 4.5 kg, MagicCleaner 150 is the perfect companion on the construction site or in the workshop.

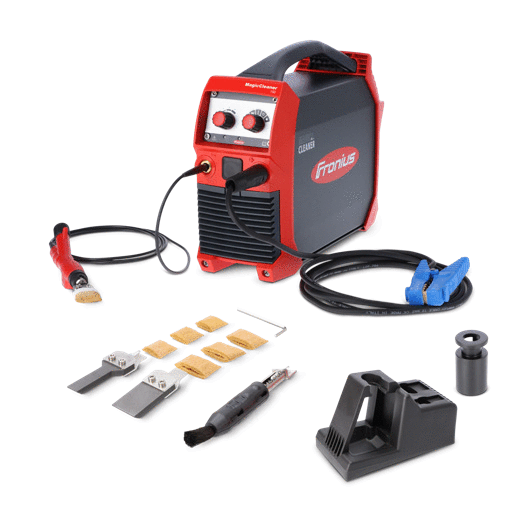

Scope of supply
/ Cleaning torch MC150
/ Grounding cable 10 mm², 3 m
/ Torch holder MC150

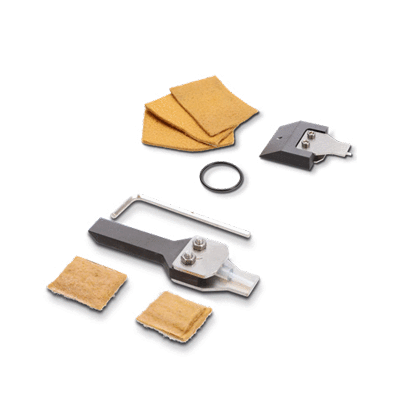

/ Basic kit: electrodes/brushes/pads
Highlights
/ Ready for use in 2 steps
/ Lightweight at just under 4.5 kg

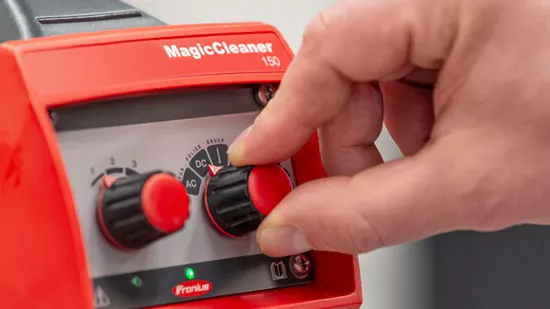

Easy to use
/ Direct selection of the desired process
Small cleaning torch
/ Manual electrolyte dosing
/ Attachable 100 ml tube
Torch holder
/ For easy securing of pads and storage of the torch
Housing
/ Tried-and-tested robust housing
|
Functions / |
MagicCleaner 150 |
MagicCleaner 300 |
|
AC cleaning |
🗸 | 🗸 |
| DC polishing | 🗸 | 🗸 |
| Printing (AC & DC) | 🗸 | 🗸 |
| Integrated pump | - | 🗸 |
| Output | 15 A | 30 A |
| Cleaning torch MC150 | 🗸 | 🗸 |
| Cleaning torch MC300 | - |
🗸 |
| Cleaning fluid (contents) | 100 ml tube | 1.8 l tank |

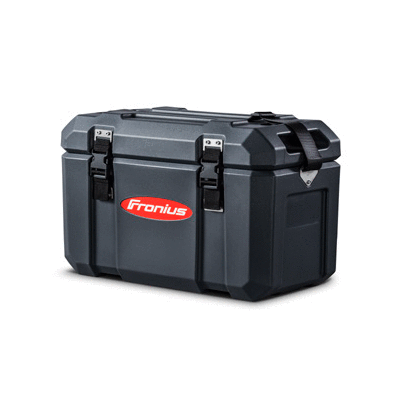

| ToolCase 60 | 🗸 | - |
| Toolcase 120 | - | 🗸 |
| ToolBox 210 | - | 🗸 |
| Trolley available | - | 🗸 |
MagicCleaner 150 und 300
Inverter technology
/ Weight reduction
/ Energy-saving
Existing certifications
/ CE, UKCA, UL/CSA, CCC, EAC, AUS/NZ

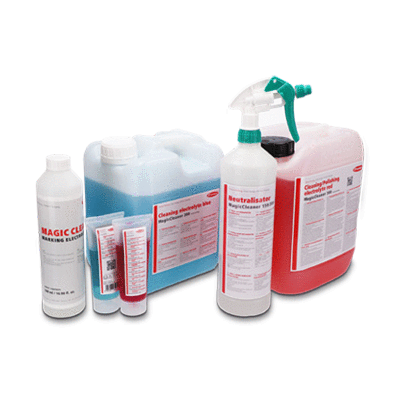

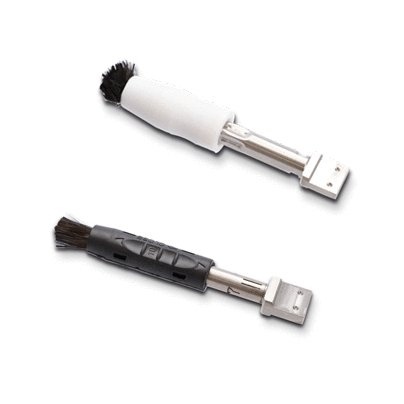

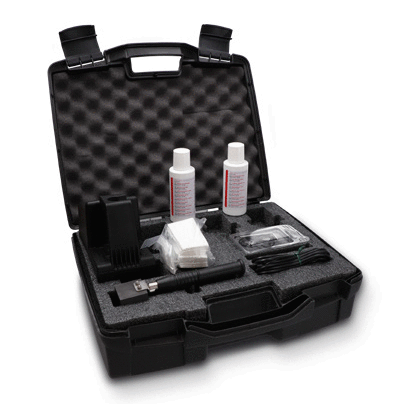

Accessories
