SnapINverter Symo Advanced – commercial inverters

Symo Advanced SnapINverter

for Commercial Solar

The inverter generation for maximum safety, reliability & ROI

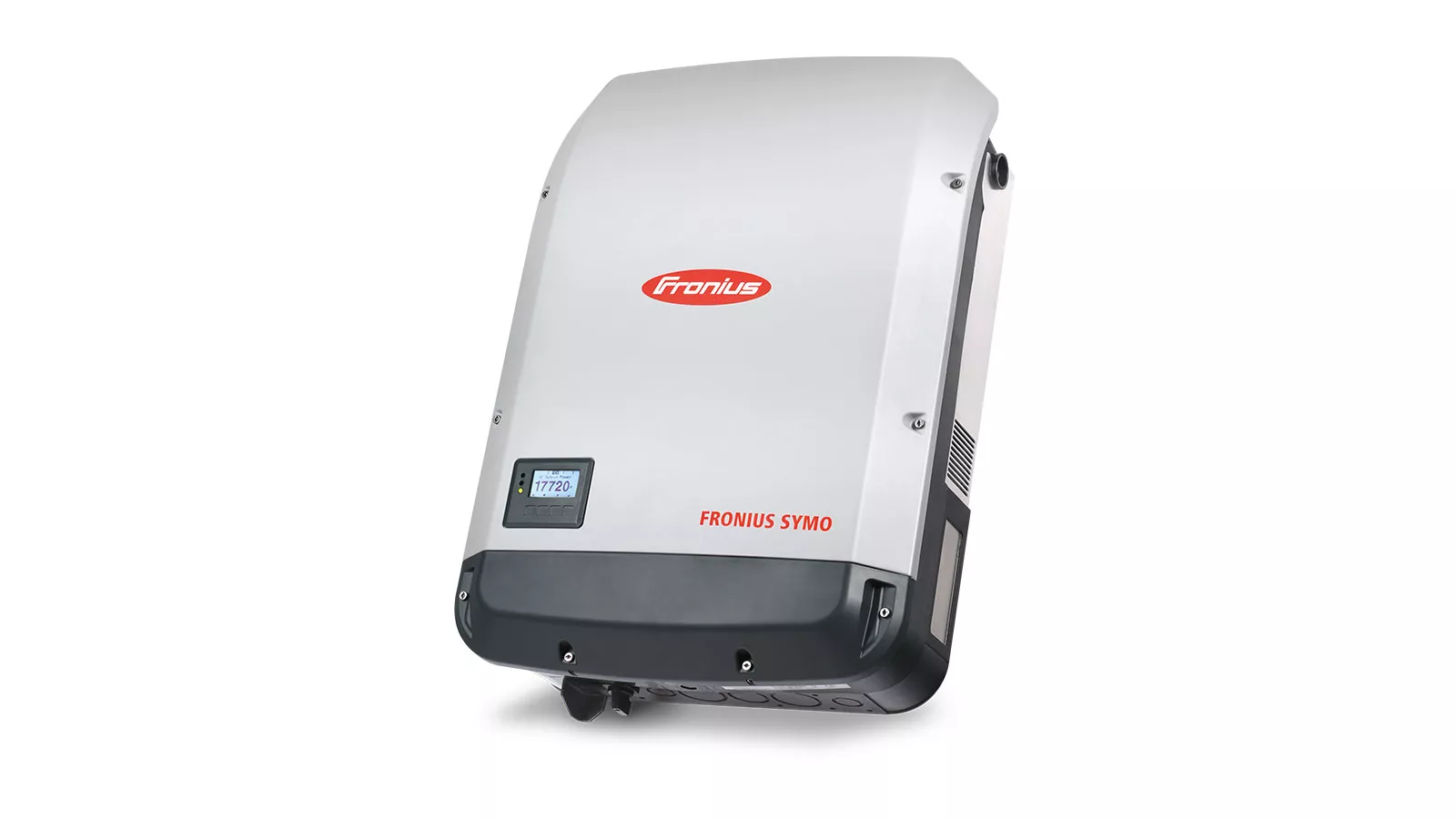

The Fronius Symo Advanced inverter line features six models ranging from 10 kW to 24 kW, ideal for commercial and industrial applications. The Symo Advanced is lightweight and combines high-power density with flexibility to ensure the fastest possible installation for your PV project.

The small number of total power conversion electronics adds to the high serviceability from any mounting spot. You get total system granularity with only a low number of system components.

Optimizing costs with Fronius inverters

For larger photovoltaic systems it is particularly important to keep the running costs (OPEX) as low as possible and to maximize the yield as much as possible. This results in shorter payback periods and high returns (a higher return on investment) – to the delight of every investor.

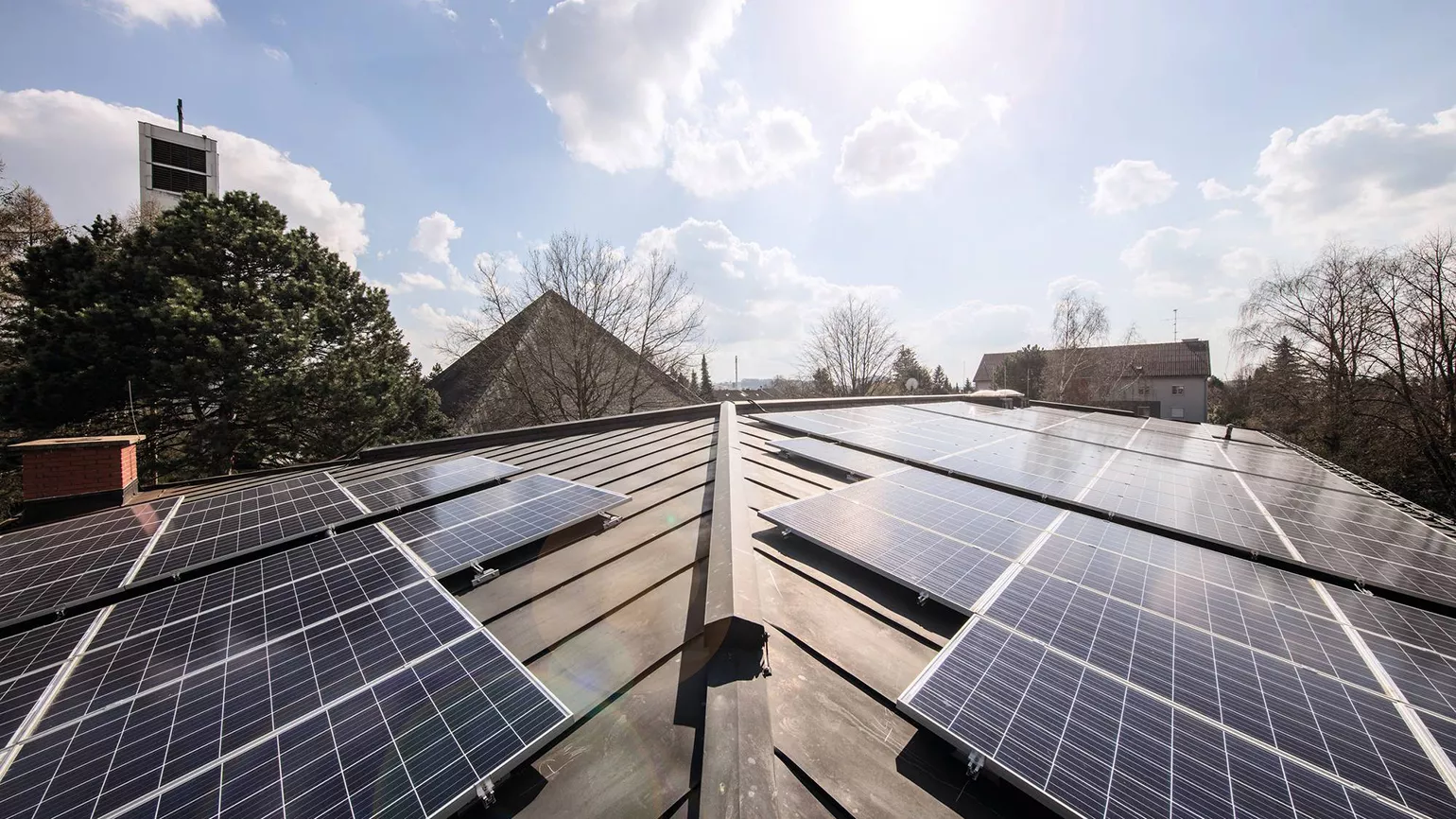

By using Fronius inverters, an economically viable solar system can be implemented even under complex system conditions. Thanks to the SuperFlex Design feature of the Fronius Symo Advanced, even complex systems with different roof orientations or shading are not a problem.

Shade mitigation

The Fronius Symo line comes with a smart shade mitigation feature: The Fronius Dynamic Peak Manager (DPM) is an enhanced MPP tracking software that scans the entire I-V curve when searching for the optimal operating point. Usually, a MPP tracker starts looking for the maximum power point at a high voltage, because that’s where usually the peak of the curve lies. However, in a shaded array, the curve turns into an S-shape, where the peak at a high voltage is no longer the maximum power point across the entire curve.

By checking the entire characteristic curve on a regular basis, the DPM finds the global Maximum Power Point (GMPP) for partially shaded arrays. As with many other technologies, software is replacing clunky hardware with smarter and more integrated solutions. (see study here).

SunSpec rapid shutdown

With an integrated power line communication (PLC) transmitter, based on the SunSpec Rapid Shutdown communication standard, all Symo Advanced inverters have attained UL-PVRSE listing as a transmitter. The inverter is also listed as a UL-PVRSS with APsystem’s RSD device (Rapid Shutdown).

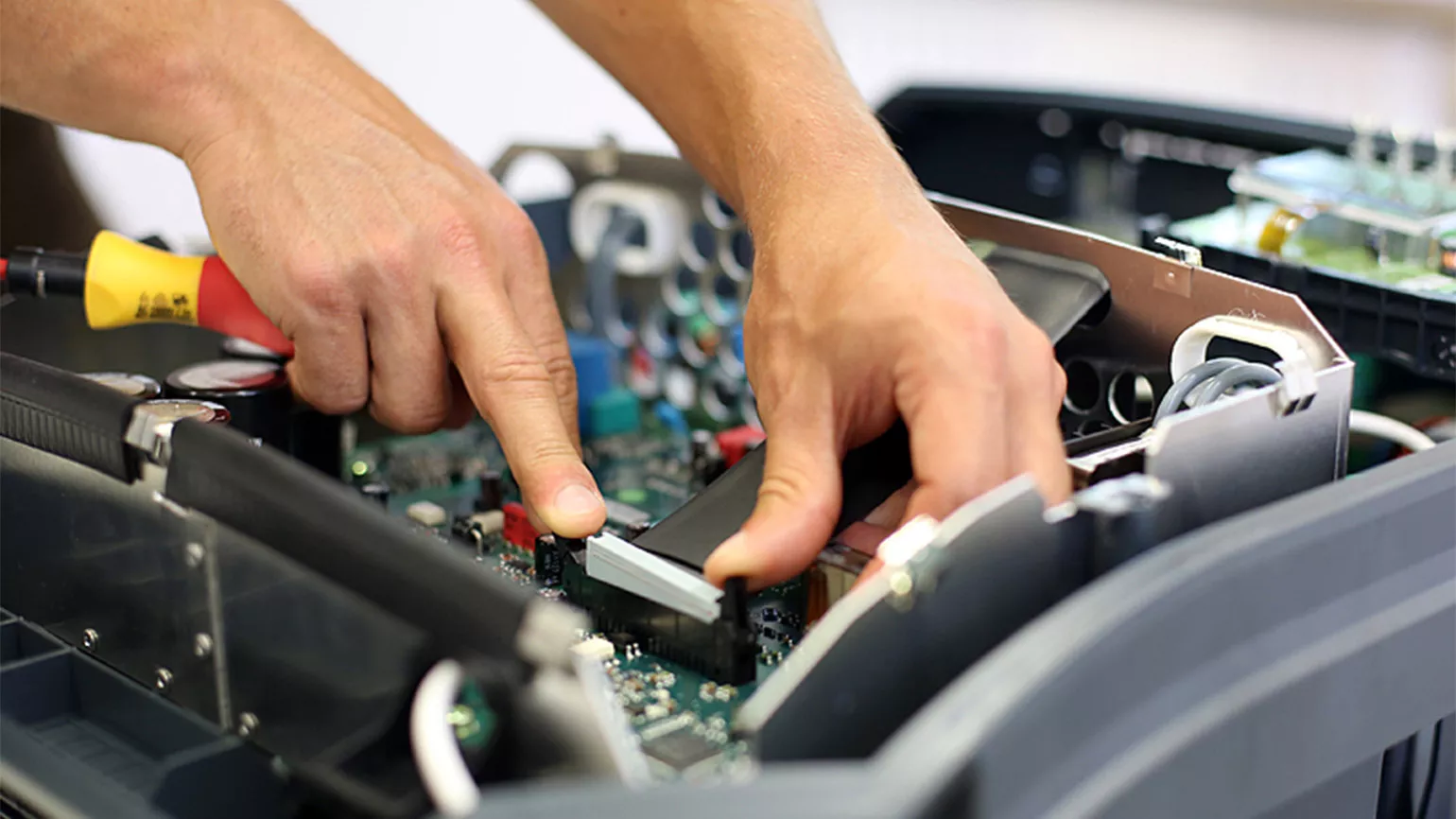

PC board replacement

Fronius Symo inverters are incredibly easy to service and ready for pro-active service solutions. Thanks to the inverter’s field-serviceability, reliability and low component count, Fronius Solutions Partners can solve most service issues with just one truck roll to the site. This means minimum time and cost for you and maximum yield for system owners.

Proven SnapINverter technology

Fronius SnapINverters are characterized by intelligent device design, maximum flexibility and smart functions.

Easy installation: Simply swing the inverter into the wall bracket.
Uniform design: Once you are familiar with one model, you can easily install others too.
Highest service quality: Easily accessible interfaces, remote updates and the PC board replacement process ensure quick and easy servicing.
Easy to use: Integrated data communication and online monitoring through Fronius Solar.web.
Future-proof: Open interfaces ensure the easy integration of third-party components – today and in the future.

Flexible AC service options

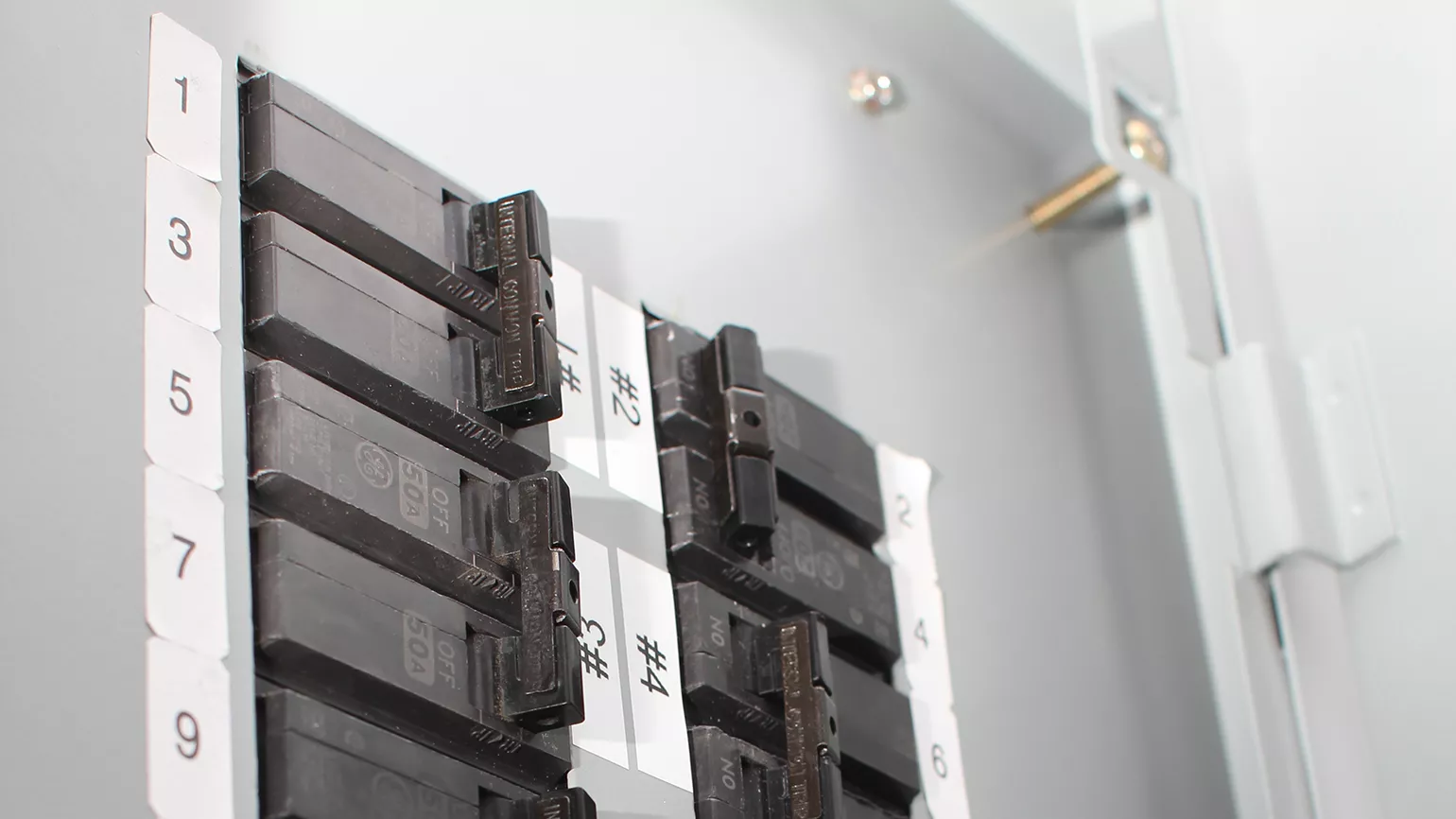

The 10 and 12kW models are available in 208 and 240 volt Delta, High-Leg, and WYE transformer output – eliminating the need for costly transformers. The 15-24 kW models work with 480 volt WYE services.

Fronius Symo Advanced is UL 3741 certified

UL 3741 is a solution to the NEC 690.12 requirement of module level rapid shutdown within a photovoltaic (PV) solar system. The Fronius Symo Advanced string inverter is UL 3741 certified for use with the PanelClaw® and IronRidge® racking systems when the inverter is installed within the 1ft array boundary.

More about UL 3741

Features at a glance

Active Cooling Technology

Prolongs the life of the inverter
Enables flexible system design & easy installation
Assists with yield optimization

Dynamic Peak Manager

MPP tracking algorithm with a tolerance for shading
Maximum yields even in the case of partial shading
In many cases, power optimizers are not needed

SunSpec Rapid Shutdown

Best plug-and-play solution for the National Electrical Code’s module-level shutdown requirement
Based on an industry standard with Power Line Communication (PLC)

More about SunSpec

Integrated data communication

Easy connection of the inverter to the Internet via LAN/WLAN
Data logging, WLAN, Ethernet, energy management, web server and numerous interfaces fully integrated
Connection to third-party components by means of interfaces such as Modbus TCP SunSpec, Modbus RTU SunSpec or Fronius Solar API (JSON)

SnapINverter Technology

Innovative mounting system
Easy installation and maintenance
Components can be exchanged instead of replacing the device during servicing

SuperFlex Design

Enables maximum flexibility in system design
Different roof orientations and shading of strings do not pose any problems

Zero feed-in

Feed-in management from 0 - 100%
Compliance with all requirements of network operators
Simple adjustment via the inverter interface

1 / 7

Upcoming trainings & webinars

Fronius inverters in action

Best performance of the Fronius Symo Advanced

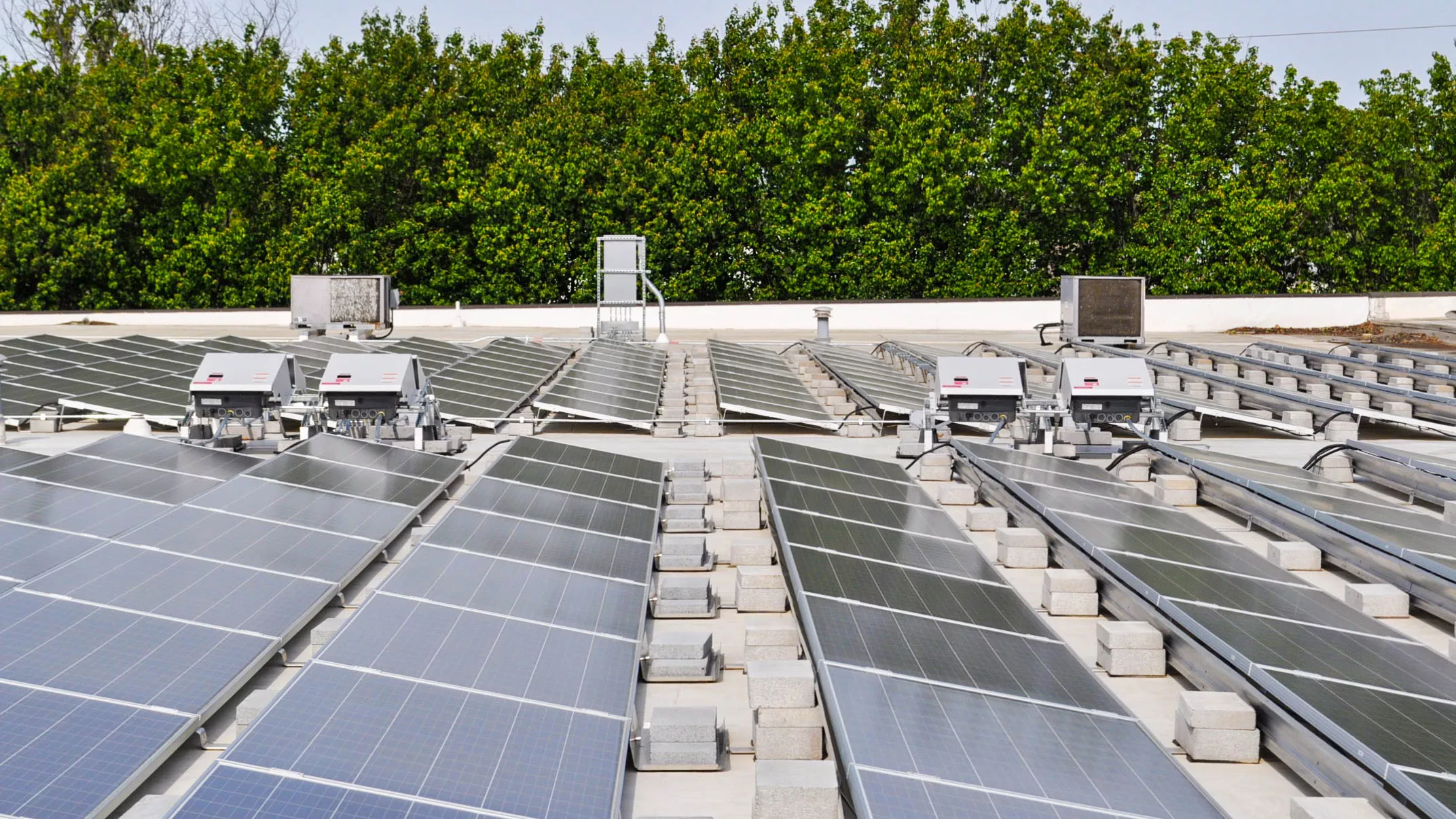

The PV system consists of 10 Fronius Symo SnapINverters, 10 Fronius Shade Covers, and 400 JA Solar 330- watt solar panels. Vulcan Solar Power a leading provider of turnkey solar energy systems across Alabama, Mississippi, and Georgia, designed and installed the PV system that is projected to produce more than 205,000 kilowatt-hours (kWh) of electricity in its first year.

The system is also the largest commercial system in central and southern Alabama.

See the reference

Technical data

Technical data	Symo UL	Symo Advanced
Power category in kW	15	10 - 24
Mains connection (Uac, r)	3~ NPE 208/220 V	3~ NPE 208-240 V
Number of MPP trackers	1	2
DC input voltage range	325 - 1,000 V	200 - 600 V
Oversizing	150%	150%
Dimensions in mm	725 x 510 x 225	725 x 510 x 225
Weight	35.52 kg	41.68 kg
