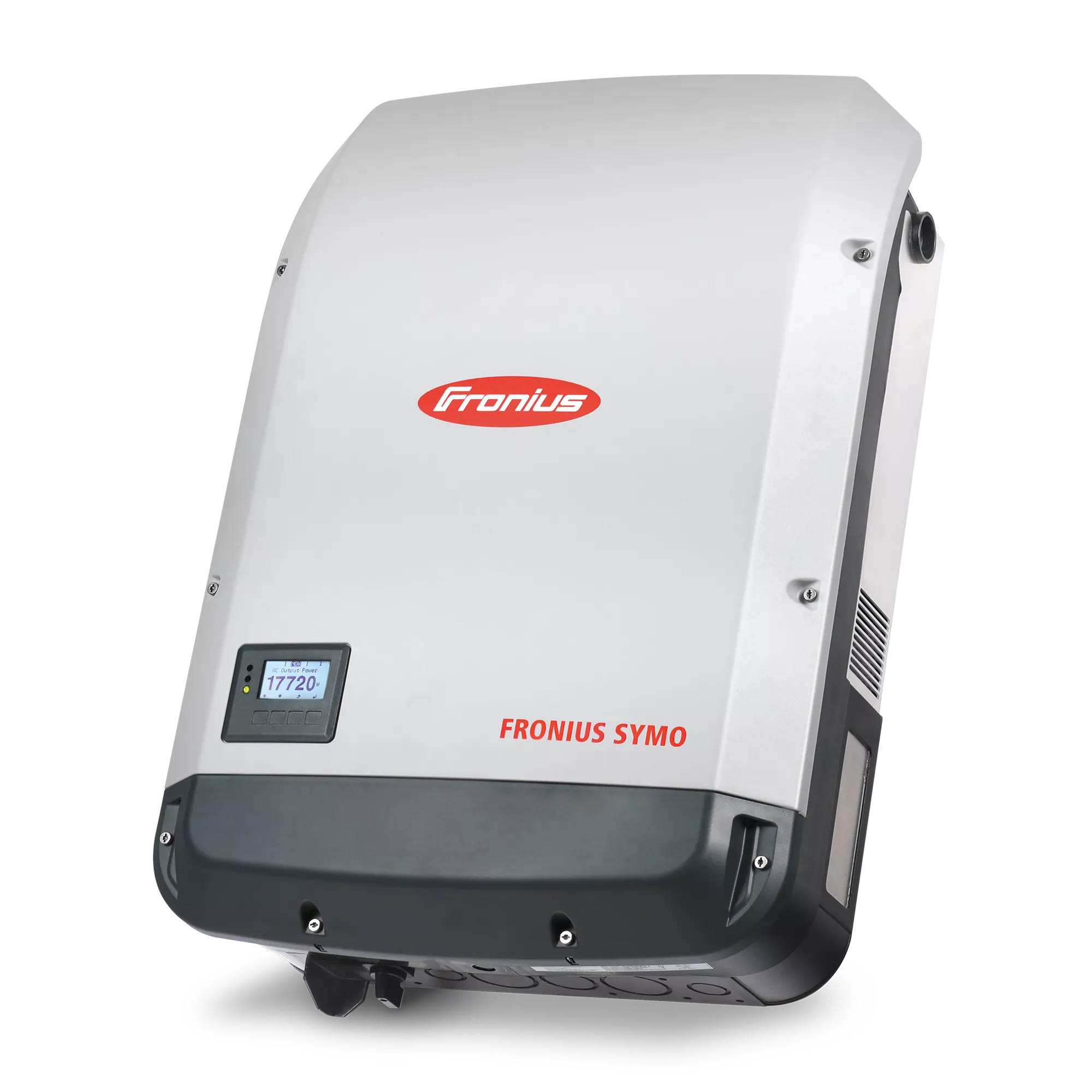

Fronius Symo
Commercial projects that last.
The transformerless Fronius Symo 15.0 208 is the ideal compact three-phase solar inverter for applications in the 208V AC segment. The Fronius Symo is the clear choice: it is the largest 208V version on the market. It has necessary features fully integrated: Fronius Design Flexibility with dual MPPT and Dynamic Peak Manager, as well as a streamlined installation process. The SnapINverter hinge mounting system, lightweight inverter and easy commissioning app make installation possible in under fifteen minutes. Several industry-leading features are available with the Fronius Symo including Wi-Fi and SunSpec Modbus interfaces for seamless monitoring and datalogging (with integration of Fronius Datamanager 2.0 card in one per 100 units), field proven Arc Fault Circuit Interruption (AFCI) and Fronius’ superb online and mobile monitoring platforms. Also field serviceable, The Fronius Symo is the most communicative, efficient, sustainable and streamlined three-phase string inverter available on the market.
*The term Wi-Fi is a registered trademark of the Wi-Fi Alliance.
Further documentation is available upon request.
Please choose your desired product.
Technical Data
Input Data
| Number of MPP trackers | 1 |
|---|---|
| Recommended PV Power (kWp) | 12,0 - 19,5 kWp |
| Max. usable input current | 50 A |
Max. usable input current total (MPPT1 + MPPT2) | 50 A |
| Max. array short circuit current (1.5 * Imax) | 75 A |
Nominal input voltage | 325 V |
DC input voltage range (Udc min - Udc max) | 325 - 1000 V |
MPP Voltage Range | 325 - 850 V |
Max. input voltage (Udc max) | 1000 V |
| Integrated DC string fuse holders | 6- and 6+ |
Output Data
| Max. output power 480 V | NA |
|---|---|
| Max. output power 240 V | NA |
| Max. output power 208 V | 15 kVA |
Output configuration | 3~ NPE 208/220 V |
| Frequency range | 45 - 65 Hz |
| Frequency | 60 Hz |
Power factor range | 0 - 1 ind./cap. |
| Max continuous output current 480 V | NA |
| Max. continuous output current 240 V | NA |
| Max. continuous output current 208 V | 41,6 A |
| OCPD/AC breaker size 480 V | NA |
| OCPD/AC breaker size 208 V | 60 A |
| Max. efficiency | 97,3 % |
| CEC efficiency 480 V | NA |
| CEC efficiency 240 V | NA |
| CEC efficiency 208 V | 96,5 % |
General Data
| UL safety standards & network regulations | UL 1741-2015, UL 1998, UL 1699B Issue 2-2013 |
|---|---|
| Dimension / width | 1,68 ft |
| Dimension / height | 2,38 ft |
| Dimension / depth | 8,9 in |
| Weight | 78,31 lb |
| Degree of protection | NEMA 4X |
| Night-time consumption | < 1 W |
| Inverter design | Transformerless |
| Cooling | Variable speed fan |
| Ambient Temperature Range | -40°C - +60°C |
| Maximum Relative Humidity | 0 - 100 % |
| Max. altitude | 2000 m (6560 ft) with a max. input voltage of 1000 V / 3400 m (11160 ft) with a max. input voltage of 850 V |
| Certificates and compliance with standards | UL 1741-2010, UL1998 (for functions: AFCI and isolation monitoring), IEEE 1547-2003, IEEE 1547.1-2008, ANSI/IEEE C62.41, FCC Part 15 A & B, NEC Article 690, C22. 2 No. 107.1-01 ( September 2001), UL1699B Issue 2 -2013, CSA TIL M-07 Issue 1 -2013 |
| DC connection technology | 6x DC+ and 6x DC- screw terminals for copper (solid / stranded / fine stranded) or aluminium (solid / stranded) |
| AC connection technology | Screw terminals 14-6 AWG |
| Interference emission class | B |
Protection Devices
| DC reverse polarity protection | Yes |
|---|---|
| Anti islanding | Internal in accordance with UL 1741-2005, IEEE 1547-2003 and NEC |
| Over temperature protection | Output power derating / Active cooling |
| AFCI | Yes |
| Rapid shutdown compliant | Yes (according to NEC 2014) |
| Ground fault protection with isolation monitor interrupter | Yes |
| DC disconnector | Yes |
Interfaces
| USB (type A socket) | Datalogging and inverter update possible via USB |
|---|---|
| 2x RS422 (RJ45 socket) | Fronius Solar Net |
| Wi-Fi / Ethernet / Serial / Datalogger and webserver | Wireless standard 802.1 1 b/g/n / Fronius Solar.web, SunSpec Modbus TCP, JSON / SunSpec Modbus RTU - Available with the Fronius Datamanager 2.0 Card only |
| 6 inputs and 4 digital I/Os | Load management signaling, multipurpose I/O - Available with the Fronius Datamanager 2.0 Card only |
SnapINverter technology
The Fronius SnapINverter generation features a simple, standardized hinged mounting system that makes installation and service easier than ever. The inverters consist of two main parts: the power stage and the connection compartment, ensuring a convenient installation process. First, you mount the remarkably lightweight connection compartment and all wiring to the wall. Then simply snap the power stage in - allowing for installation within 15 minutes by only 1 person! Furthermore, installers don’t need to remove the entire inverter for servicing. Just take the power stage and leave all wires in place, making the Fronius SnapINverters the most user-friendly inverters on the market.
Integrated data communication
Fronius believes that every solar system should be monitored. Therefore, we offer integrated data communication capabilities for all our inverters and free online monitoring with Fronius Solar.web. Simply connect the inverter to the internet via Wi-Fi and use our Modbus TCP SunSpec, Modbus RTU SunSpec or Fronius Solar API (JSON) interface for seamless data communication to third parties. The different interfaces can be operated in parallel to the Fronius Solar.web online platform. The monitoring is easily set up via our smartphone app - it's so easy, even the home owner can do it.
Design Flexibility
Fronius inverters offer great design flexibility, giving you all the options you need and making system design extremely simple. Two independent MPP trackers, wide DC input voltage windows and oversizing of up to 150% make the inverters suitable for complex roofs, different array sizes and multiple orientations. The Fronius Design Flexibility offers a solution for all your system design needs
Smart Grid Ready
Fronius inverters enable the grid of tomorrow. Our inverters are already equipped to meet the technical requirements of a smart grid of the future. A set of smart functions, known as Advanced Grid Features, are built into the inverters. They include a wide range of control functions for dynamic feed-in of both effective and reactive power. These functions are designed to enable a stable grid and highest solar density, while preventing unwanted system shutdowns if grid parameters exceed their thresholds.
Arc Fault Circuit Interruption Integrated
The Fronius Arc Fault Circuit Interruption (AFCI) makes each inverter NEC 2011 compliant and offers a best-in-class solution for detecting arcs. Ensuring the utmost safety, AFCI shuts down the inverter in the event of an arc fault within your solar system.
