Perfect Welding

Gas-cooled

TIG Welding Torches

Welding with TIG welding torch

Gas-cooled welding torches

Fronius welding torches represent the perfect symbiotic relationship between technology and ergonomics. The ergonomic handle with anti-slip components lies comfortably and securely in the hand, allowing the torch to be guided with ease. Various operating concepts take care of the most varied welding requirements.

Further details about our TIG welding torches
WIG torch

THP welding torches

TIG welding torch gas cooled

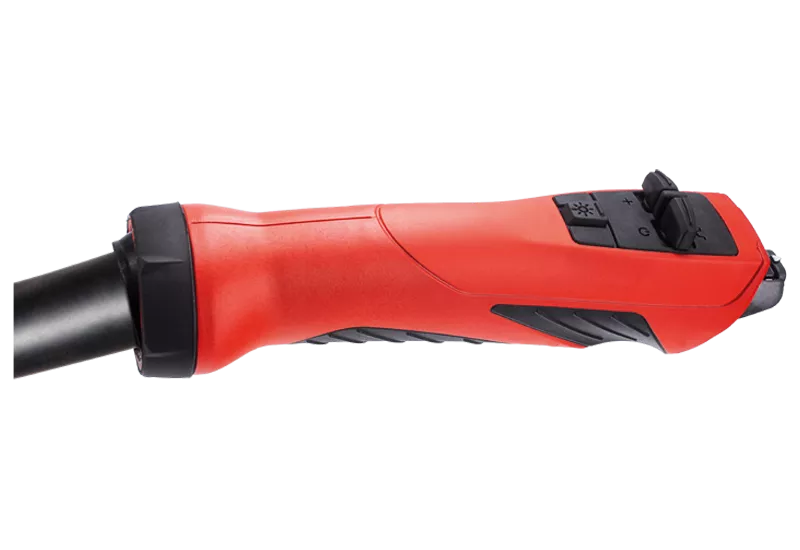

THP 160i G ML

 Welding current (ArCO2)  Control variants
  • TIG DC 60/100% D.C.: 120/90 A
  • TIG AC 60/100% D.C.: 90/70 A
  • Hosepack length: 4/8 m
  • Up/Down
  • JobMaster
  • Potentiometer
TIG welding torch gas cooled

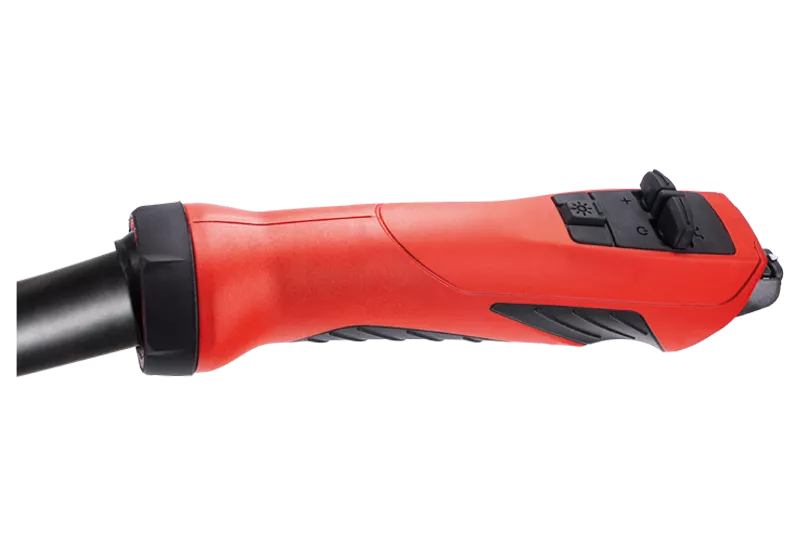

THP 220i G ML

 Welding current (ArCO2)  Control variants
  • TIG DC 60/100% D.C.: 170/130 A
  • TIG AC 60/100% D.C.: 130/100 A
  • Hosepack length: 4/8 m
  • Up/Down
  • JobMaster
  • Potentiometer



TIG welding torch gas cooled

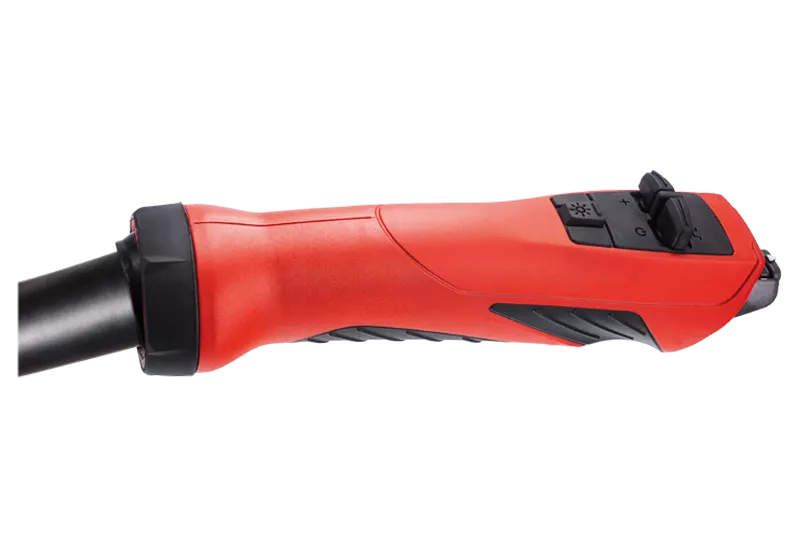

THP 260i G ML

 Welding current (ArCO2)  Control variants
  • TIG DC 60/100% D.C.: 200/150 A
  • TIG AC 60/100% D.C.: 160/120 A
  • Hosepack length: 4/8 m
  • Up/Down
  • JobMaster
  • Potentiometer
TIG welding torch gas cooled

THP 120i G SH ML

 Welding current (ArCO2)  Control variants
  • TIG DC 60/100% D.C.: 100/80 A
  • TIG AC 60/100% D.C.: 70/50 A
  • Hosepack length: 4/8 m
  • Standard
  • Up/Down
  • Potentiometer
  • Long trigger
  • No trigger
TIG welding torch gas cooled

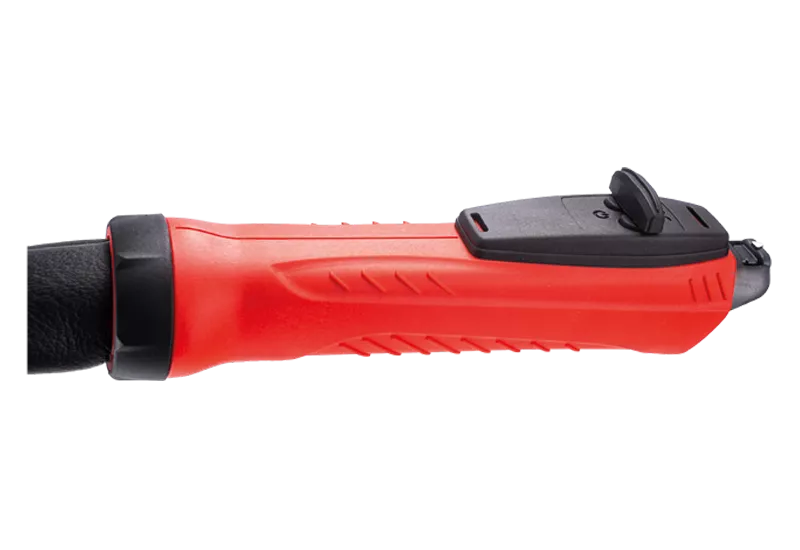

THP 180i G SH ML

 Welding current (ArCO2)  Control variants
  • TIG DC 60/100% D.C.: 130/100 A
  • TIG AC 60/100% D.C.: 90/70 A
  • Hosepack length: 4/8 m
  • Standard
  • Up/Down
  • Potentiometer
  • Long trigger
  • No trigger
TIG welding torch gas cooled

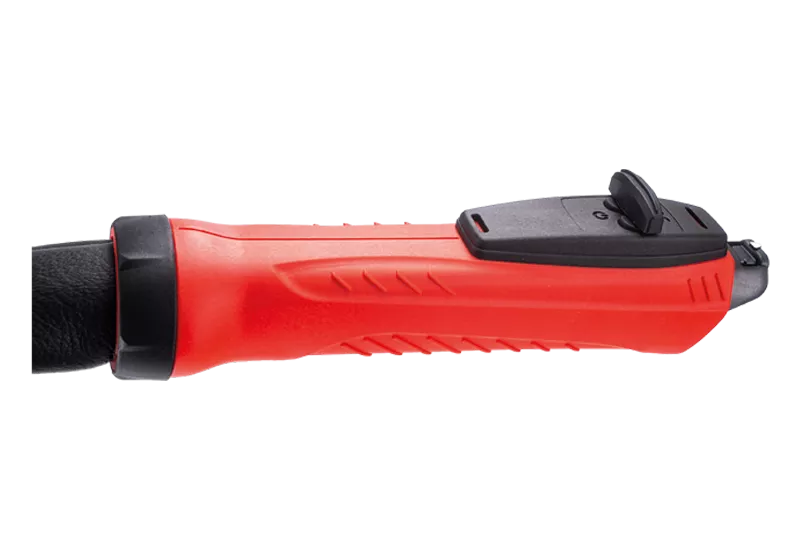

THP 150i G SH ML/FS

 Welding current (ArCO2)  Control variants
  • TIG DC 60/100% D.C.: 100/80 A
  • TIG AC 60/100% D.C.: 70/50 A
  • Hosepack length: 4/8 m
  • Up/Down

Downloads

    TTB torch bodies

    gas-cooled torch body

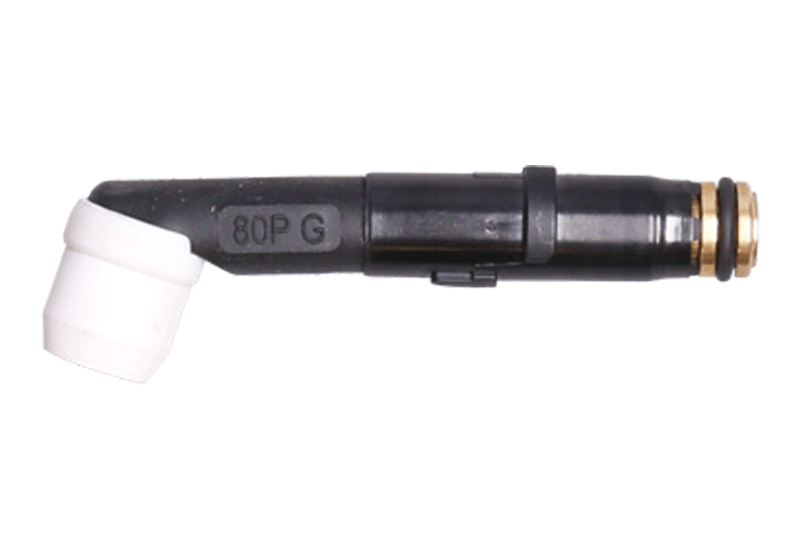

    TTB 80P G ML

    Welding current (ArCO2)
    • TIG DC 60/100% D.C.: 60/50 A
    • TIG AC 35% D.C.: 30 A
    • Electrode diameter: 1.0–3.2 mm
    gas-cooled torch body

    TTB 160 G ML*

    Welding current (ArCO2)
    • TIG DC 60/100% D.C.: 120/90 A
    • TIG AC 60/100% D.C.: 90/70 A
    • Electrode diameter: 1.0–3.2 mm
    gas-cooled torch body

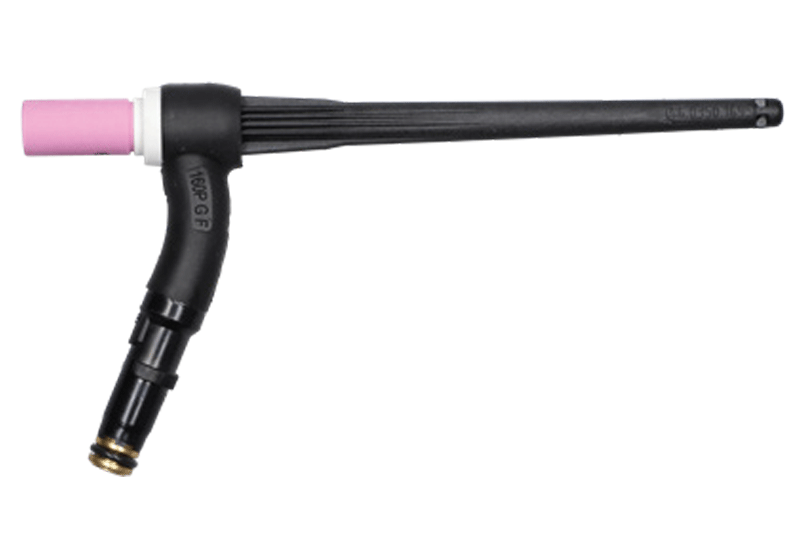

    TTB 160 G ML flex*

    Welding current (ArCO2)
    • TIG DC 60/100% D.C.: 120/90 A
    • TIG AC 60/100% D.C.: 90/70 A
    • Electrode diameter: 1.0–3.2 mm
    gas-cooled torch body

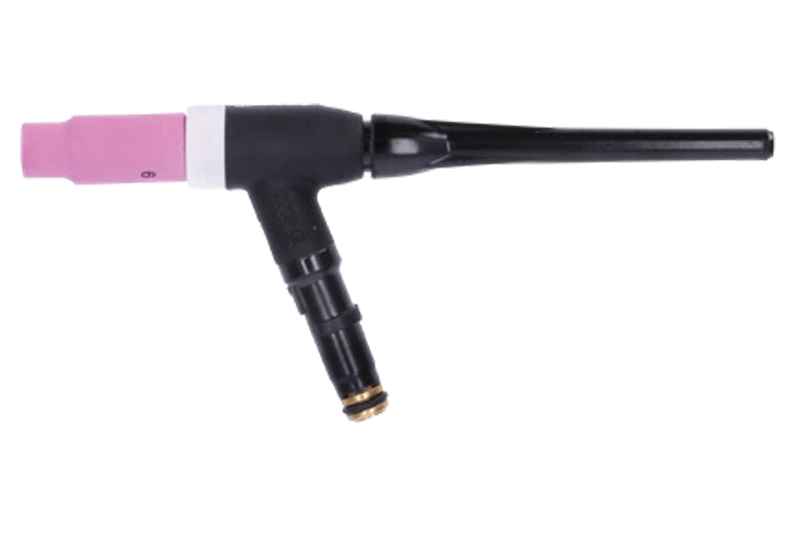

    TTB 220 G ML*

    Welding current (ArCO2)
    • TIG DC 60/100% D.C.: 170/130 A
    • TIG AC 60/100% D.C.: 130/100 A
    • Electrode diameter: 1.0–4.0 mm
    gas-cooled torch body

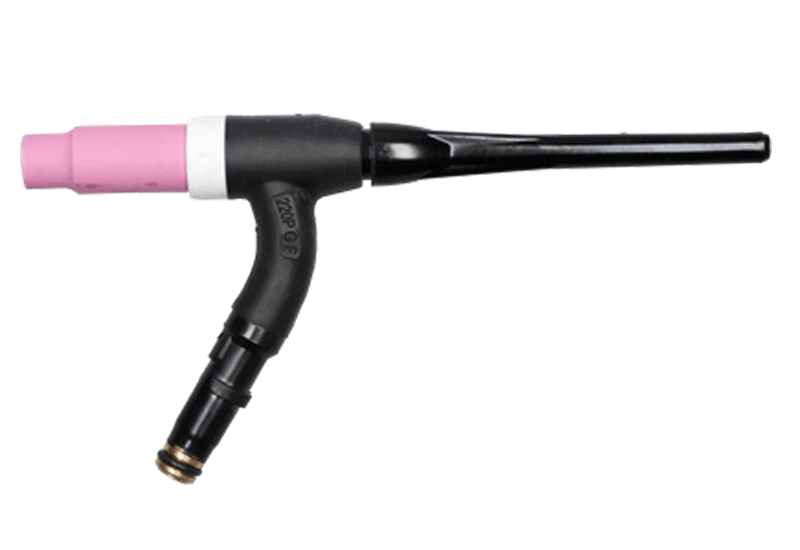

    TTB 220 G ML flex*

    Welding current (ArCO2)
    • TIG DC 60/100% D.C.: 160/130 A
    • TIG AC 60/100% D.C.: 120/100 A
    • Electrode diameter: 1.0–4.0 mm
    gas-cooled torch body

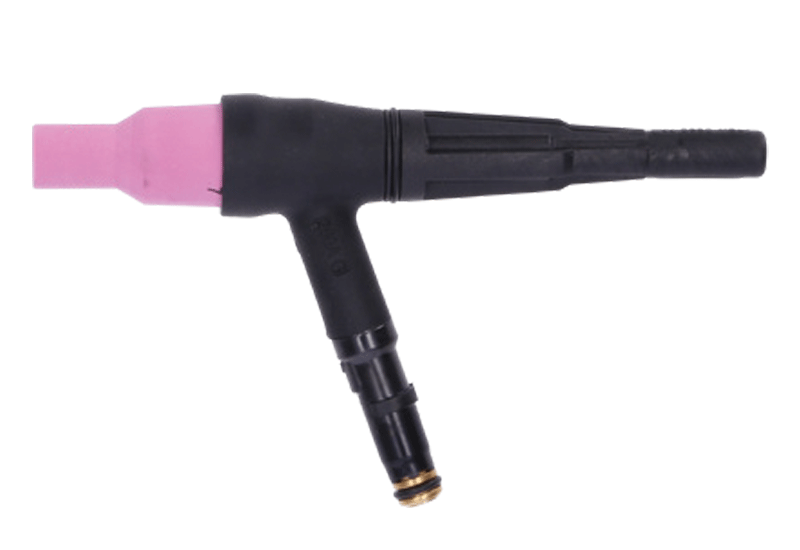

    TTB 260A G ML

    Welding current (ArCO2)
    • TIG DC 60/100% D.C.: 200/150 A
    • TIG AC 60/100% D.C.: 160/120 A
    • Electrode diameter: 1.0–4.0 mm

    Downloads

      * available with screw-on or push-on gas nozzles
