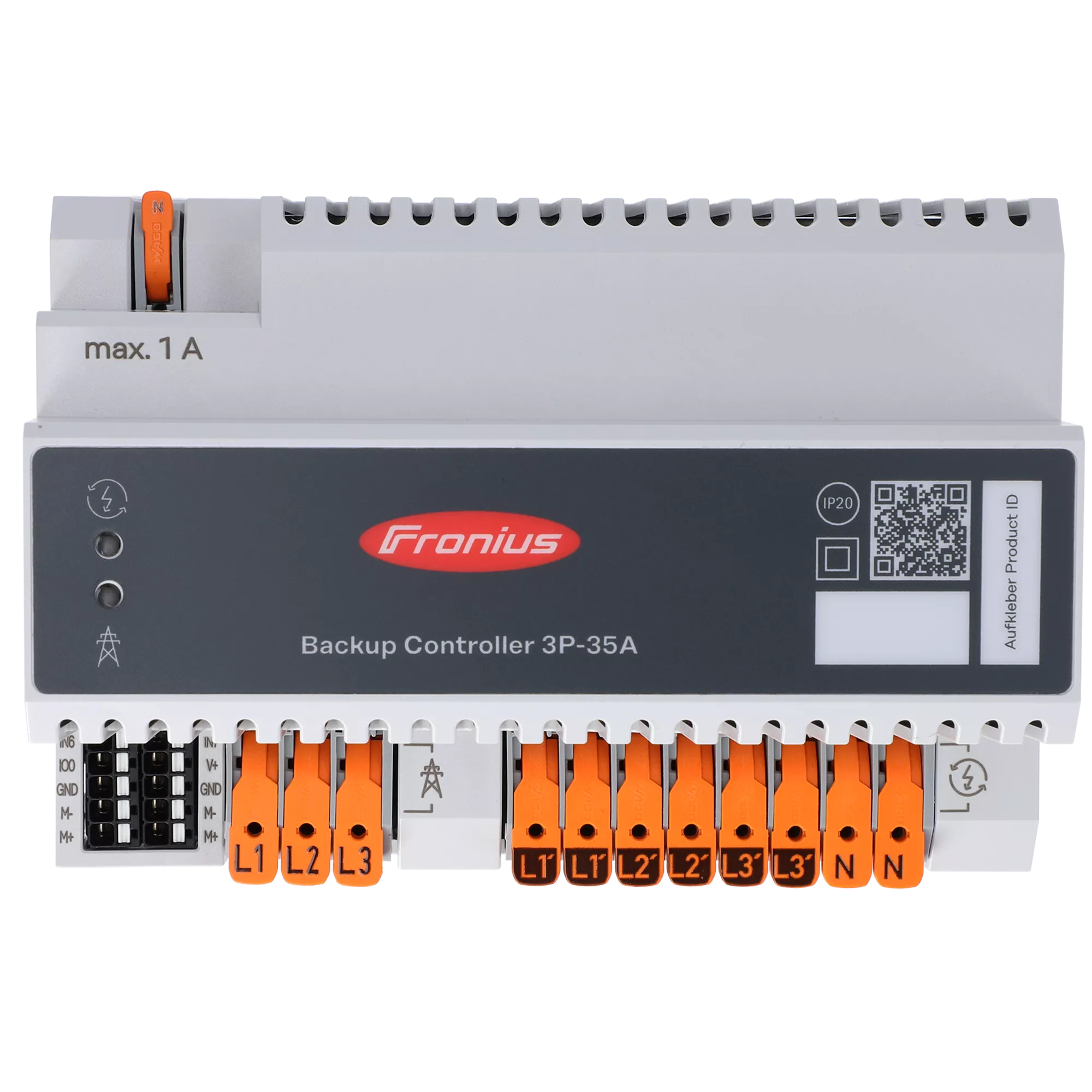

Fronius Backup Controller
Automatically switch to Full Backup mode
The Fronius Backup Controller is a switching unit that enables automatic transition to Full Backup mode. In the event of a power failure, it automatically switches to backup power operation and back to parallel grid operation as soon as the grid is available again. This solution ensures that the entire household is always supplied with electricity as long as there is enough power available from the PV system or storage - even when nobody is at home.
As a space-saving solution, the Fronius Backup Controller* can be installed quickly and easily on a top-hat rail in the control cabinet. This minimizes installation effort and costs, as an additional switchover box is no longer required.
Advantages
/ Automatic solution for maximum security
/ Supplies the entire household even when absent
/ Automatic return to normal operation
/ Easy and space-saving installation in the control cabinet
* Depending on country-specific certification and availability
Please choose your desired product.
Technical Data
Output Data
| Total harmonic distortion | <3% @Pnom (230/400VAC 50Hz) |
|---|
General Data
| Certificates and compliance with standards | IEC 60947-6-1 |
|---|---|
| Compatible inverters | Symo GEN24 Plus |
| Nominal voltage | 400/230V |
| Nominal Power | 24 kVA |
| Rated current | 35 A |
| Mains Frequency | 50Hz |
| Grid types | TN-C-S, TN-S |
| Width | 144 mm |
| Height | 100 mm |
| Depth | 66 mm |
| Weight incl. packaging | 0,97 kg |
| Protection class | IP 20 |
| Min. permissible ambient temperature | -20 °C |
| Max. permissible ambient temperature | 60 °C |
| Permitted humidity | 50 % |
| Maximum sea level | 2000 m |
| Interference emission class | B |
| Min. cable cross-section (neutral conductor to smart meter) | 1 mm² |
| Min. cable cross-section (phase/neutral conductor) | 2,5 mm² |
| Max. cable cross-section (phase/neutral conductor) | 10 mm² |
| Min. cable cross-section (data communication) | 0,14 mm² |
| Max. cable cross-section (data communication) | 1,5 mm² |
| FRT capability | Yes |
| Mounting type | DIN top hat rail 35 mm |
| Pitch units top-hat DIN rail | 8 pitch units according to DIN 43880 |
