Perfect Welding

WeldCube

Welding production at a glance

Any time. Anywhere.

In the smart factory of tomorrow, the aim is to achieve production processes that are faster, more flexible, and more powerful, with the capacity for seamless integration.

Welding data must therefore be subject to complete recording, documentation, and analysis in the field of welding technology, but data also need to be made available for other systems in the production environment.

Fronius offers a number of software solutions in the area of data management, which make it easier for the user to handle the wealth of data.

The software solutions from Fronius...

Save time and money

/ Automated documentation without handwritten notes

/ Analysis at the push of a button

/ Reduced administrative workload

Ensure safety in production

/ Traceability at component and seam level

/ Full documentation of welding data

/ Minimization of risk of error

/ Central administration of user authorizations for Fronius welding systems and software products

Increase productivity

/ Identify potential for optimization

/ Continuous weld-seam monitoring

/ All system status data at a glance

Downloads

    WeldCube
    Data management

    Fronius offers the optimal software solution for the ongoing planning, collection, analysis, and visualization of welding technology production data in the form of the WeldCube product portfolio.

    Depending on the WeldCube version, welding and system data can be stored and evaluated either locally in the welding systems or centrally in a database.

    Three variants for different customer requirements

    Local Documentation

    with WeldCube Basic and WeldCube Light

    • Data storage directly in the welding system
    • Data viewed and processed for each welding system

    Centralized Documentation

    with WeldCube Premium

    • All data stored in the central database
    • Data collection for all interlinked systems

    WeldCube Light

    Minimal local documentation
    standard for TPS/i welding systems* at no additional cost

    Mean values for every weld seam are stored directly in the welding system, which can then be separately visualized online for each TPS/i and exported as a PDF file.

    The advantages of WeldCube Light

    • Supports EN 1090-compliant documentation
    • Option to create free documentation
    • Immediate documentation without requirement for additional software integration



    * except for TPS 270i

    Functions

    WeldCube Basic

    Extended local data documentation
    with configurable range of functions

    For users who need limit monitoring or editing functions for set values and actual values recorded at a sampling rate of up to 100 ms alongside the mean values, WeldCube Basic is the answer. This variant also records data directly in the welding system and visualizes them online for each TPS/i. Furthermore, the data is available as both a PDF and a CSV export.

    The advantages of WeldCube Basic

    • Variable range of functions: options for job management, actual-value documentation, and limit monitoring
    • Ideal solution for smaller companies with few welding systems
    • Transparency and traceability at seam level
    • Can be upgraded at any time

    Functions

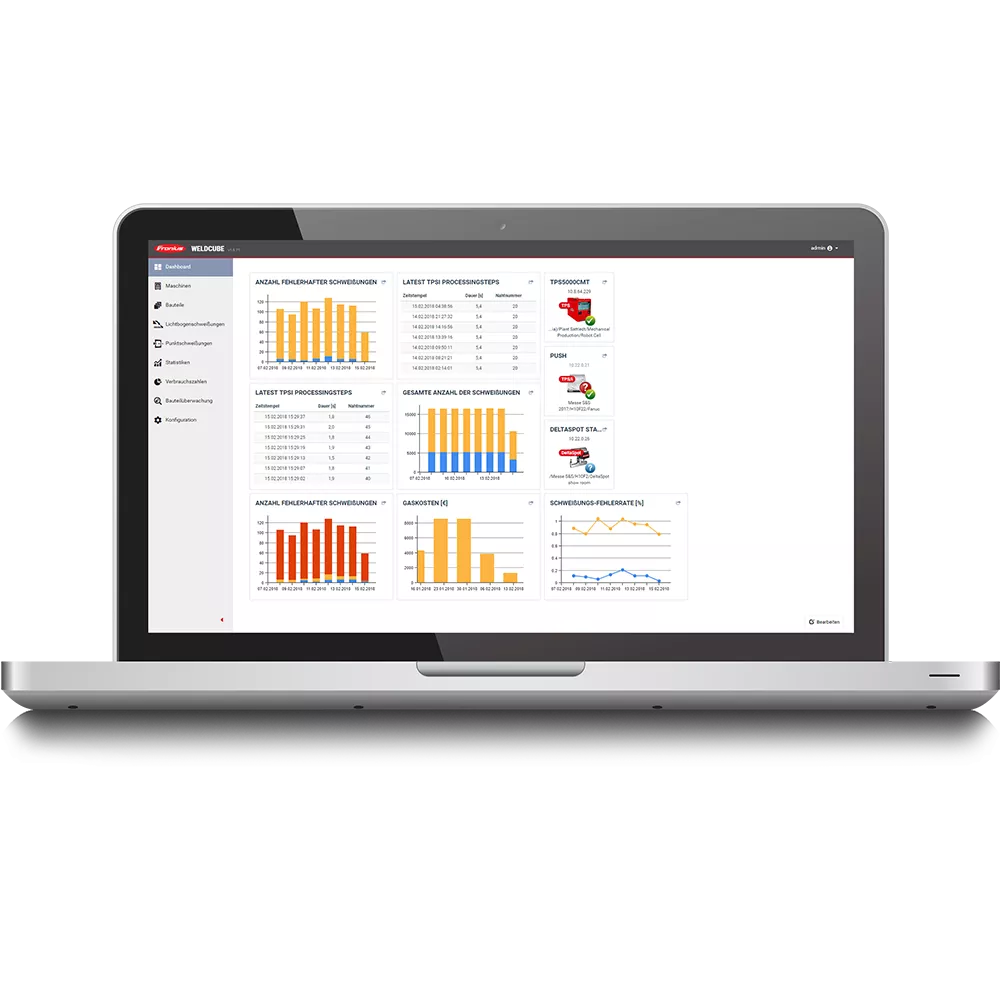

    WeldCube Premium

    Centralized documentation solution
    with intelligent management, statistical, and analysis functions, as well as graphical visualization of results

    • CENTRALIZED & NETWORKED
      Significantly reduced time and effort required for documentation and administration thanks to centralized storage of the data in a database
    • TRACEABILITY
      Targeted documentation and process optimization via the component-specific collection of welding data
    • FLEXIBILIY
      Forwarding of data to third-party systems via an integrated data interface (web API)
    • COMPATIBILITY
      In addition to the new Fronius welding systems, older series can also be used with WeldCube Premium
    • USER-FRIENDLINESS
      Straightforward graphical visualization of all recorded data for quick and easy analysis. This makes it possible to quickly detect errors that develop on components over the course of several welding processes

    The advantages of WeldCube Premium

    • Traceability
    • Centralized documentation with automated reports and statistical functions
    • Time and cost savings

    Start now collecting first impressions ofthe functions and usability of WeldCube Premium.

    You can log in straight away with these access credentials.

    Login: guest
    Password: guest

    Click here for the Online-Demo

    Functions

    Further software solutions

    WeldCube API

    Data interfaces for TPS/i welding systems and WeldCube Premium

    In order that welding data may be documented, analyzed, or made available for other software systems, Fronius offers various data interfaces, known as APIs. The customer can use the data that are made available for their own customized data management solutions.

    WeldCube API

    Central User Management

    User management in the welding system itself

    Authorizations can be assigned to users individually on Fronius welding systems that feature an integrated  authorization system.

    The system knows what the user is and is not allowed to do when they log in using a key card, key fob, or the WeldConnect app.

    Central User Management

    WeldConnect

    The Fronius app for wireless interaction with the welding system

    WeldConnect allows every welder to quickly and easily find the suitable parameters for their welding task. Step by step, the app asks for the precise details of the application at hand – such as welding process, parent material, weld seam profile and shielding gas. The user can either enter this data manually or scan the QR codes on the respective materials. Using this information, the wizard calculates the ideal welding parameters for both TIG and MIG/MAG applications.

    WeldConnect
