CWC-S Cobot Welding Cell

Eight powerful arguments for purchasing a CWC-S

Low Total Costs of Ownership
Cost-effective from batch size 1
High level of flexibility for component geometries
Easy, intuitive operation
Consistent, reproducible weld quality—hour by hour
High-tech Welding Packages for application-optimized results
Control of external axes possible (rotary unit)
CE-compliant safety housing

Cobot equipment

Standard weld configuration

Welding system: Fronius TPS 320i Pulse, Welding Package Standard

Cooling unit: CU 1100i

Wirefeeder: WF 25i

Torch hosepack: MHP 700i

Torch body: MTB 400i

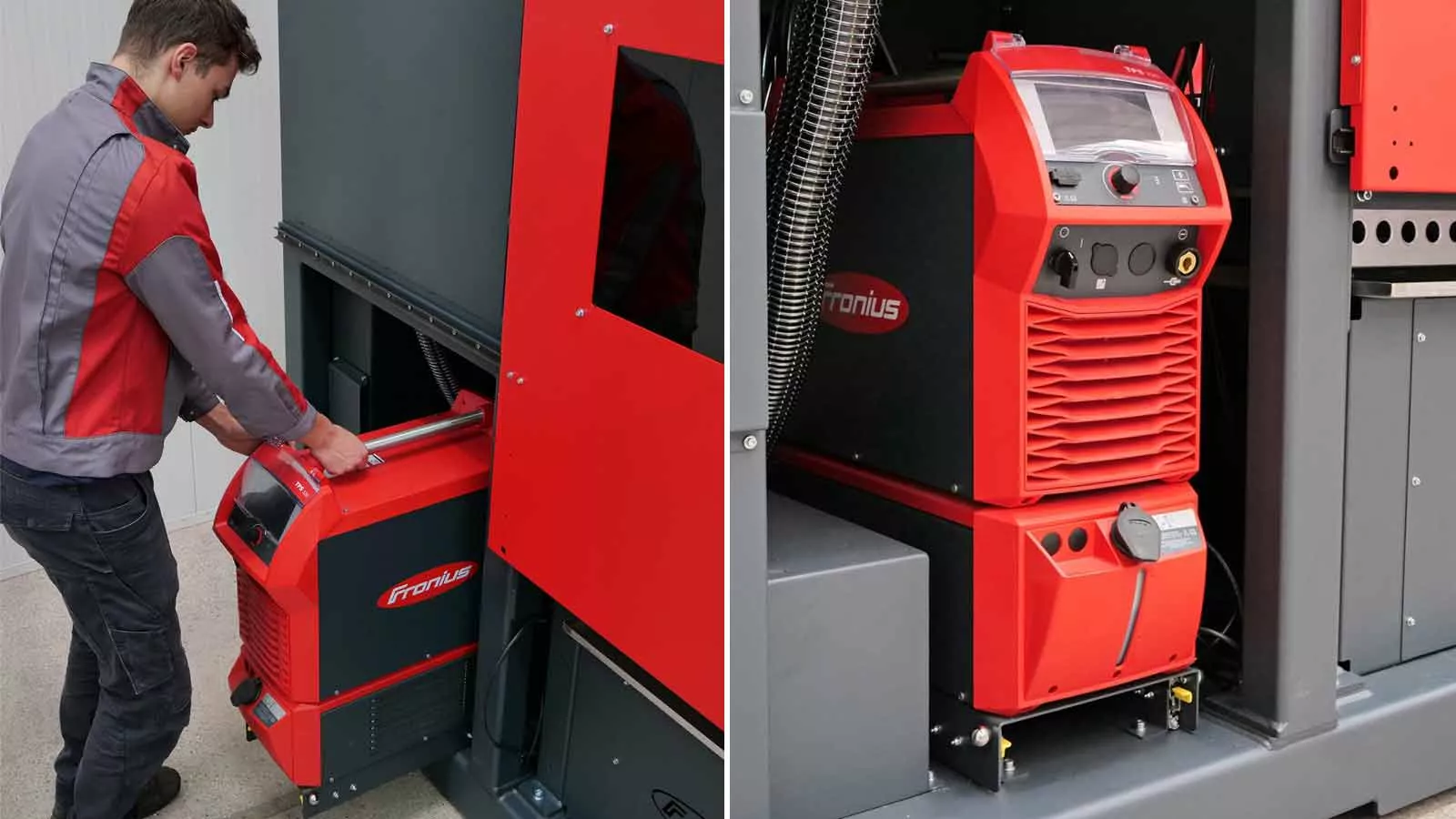

Easy maintenance: When performing maintenance work, the welding system can be easily lifted out of the welding cell without great effort, taking the strain off your back.

Features

Guide & Press

Easy and Convenient Definition of Weld Paths

Guide the welding torch to the start, contour and end points of the desired welds and press the confirm button on the control handle. All points are automatically included in the welding program.

Drag & Drop

Intuitive Programming of Welding Processes

Symbols like Handle Teach, Basic Arc or Basic Wave can be easily dragged to the desired position in the graphic programming interface. This allows you to define the entire welding process without detailed knowledge of programming.

WeldConnect App

Welding Parameters at the Push of a Button

WeldConnect finds the relevant parameters quickly and easily. It then asks you for information such as welding process, base material, weld seam profile and shielding gas step-by-step. The wizard then uses this information to calculate the optimal welding parameters.

More information

Technical Data

Dimensions & weight

L/D/H: 1680 x 2100 x 2240 mm
Weight (standard configuration): 2500 kg

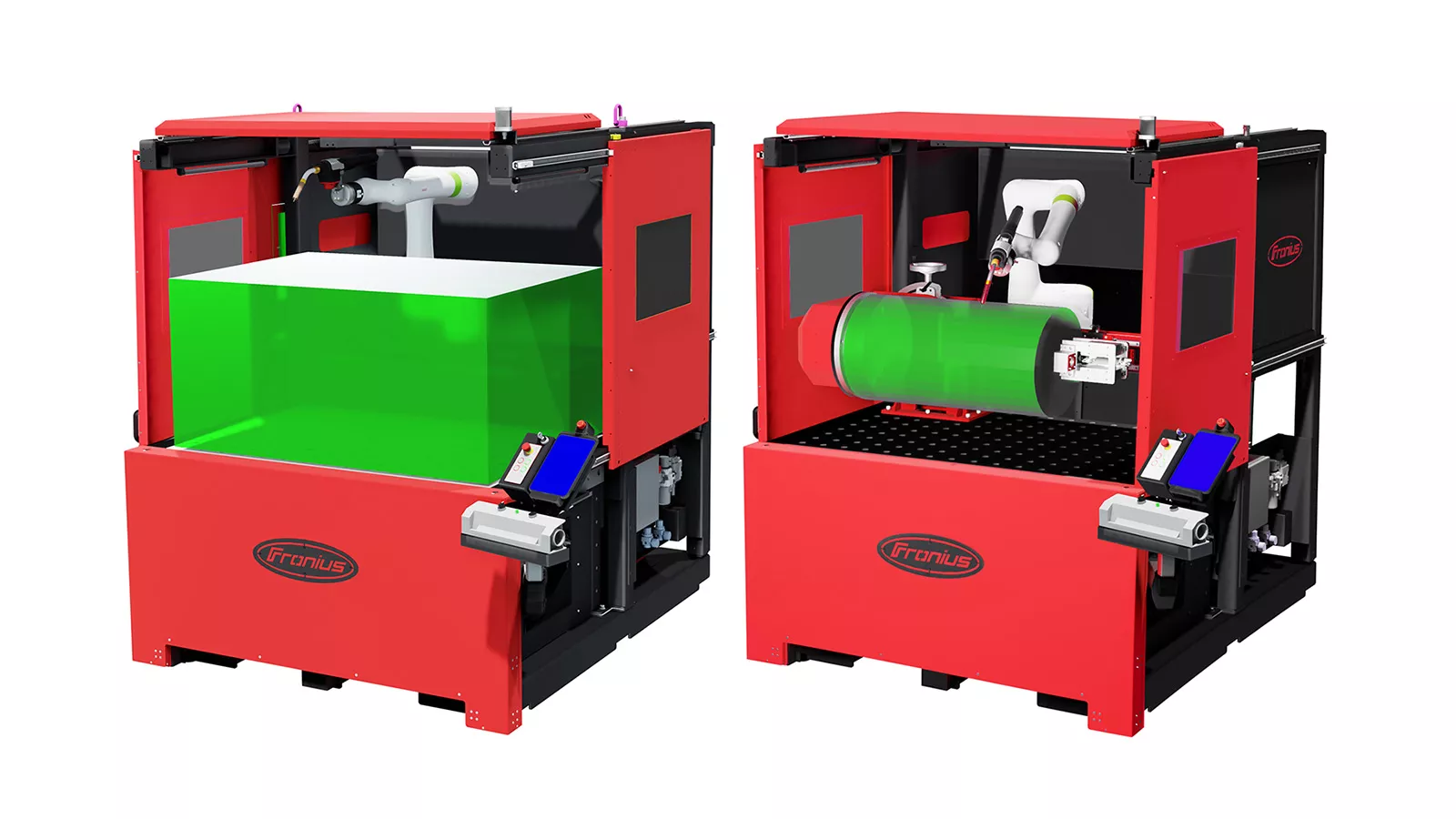

Working area (max. component size)

Without rotary unit: 1500 x 1000 x 700 mm
With rotary unit: L = 860 mm, Ø = 450 mm

Robot

Fanuc CRX-10iA
Range: 1249 mm
Repeatability: +/- 0.04 mm
Max. load: 10 kg
