TIG Welding Torches
for Manual Welding Applications
The right welding torch for every application
– With just one hosepack
That’s possible because the new TIG welding torches can be individually adjusted to suit your personal preferences or the application at hand. Do you find a large or small handle easier to hold?
Or would you prefer to control your power source from the torch? Maybe you want to improve component accessibility through the wide range of gas nozzles and torch bodies? Regardless of your needs, our TIG welding torches offer you maximum flexibility.
The benefits
Modular design
In addition to different power categories, there are two handle versions that can be equipped with different operating elements and torch body versions
Ergonomic and non-slip
The ergonomically designed handles of our new TIG welding torches protect users from fatigue, while soft components guarantee a non-slip, secure grip. The ball joint and the materials used make the hosepack very flexible and easy to handle, especially when the component is difficult to access.
Cost saving and sustainable
The welding torch does not have to be thrown away if requirements change or in the event of damage. Instead, modules can simply be replaced. The component can be changed directly on site, without the help of a service technician, saving resources, time, and costs.
Longer wearing part lifetimes
Perfect cooling right to the head of the torch body ensures reliable heat dissipation. This significantly increases the service life of the torch’s wearing parts.Downloads
Technology and ergonomics
Operation
Fronius welding torches represent the perfect blend of technology and ergonomics. The ergonomic handle with non-slip components sits comfortably and securely in your hand, allowing the torch to be guided with ease. Various operating concepts take care of the most varied welding requirements. Depending on the application, welders can choose between a standard or a small handle hosepack.
Standard handle
one handle for all versions
Simple conversion* from the user interface, only one screw needs to be unscrewed.
- UpDown
- JobMaster
- Potentiometer
*) Option only applies to standard handle
JobMaster

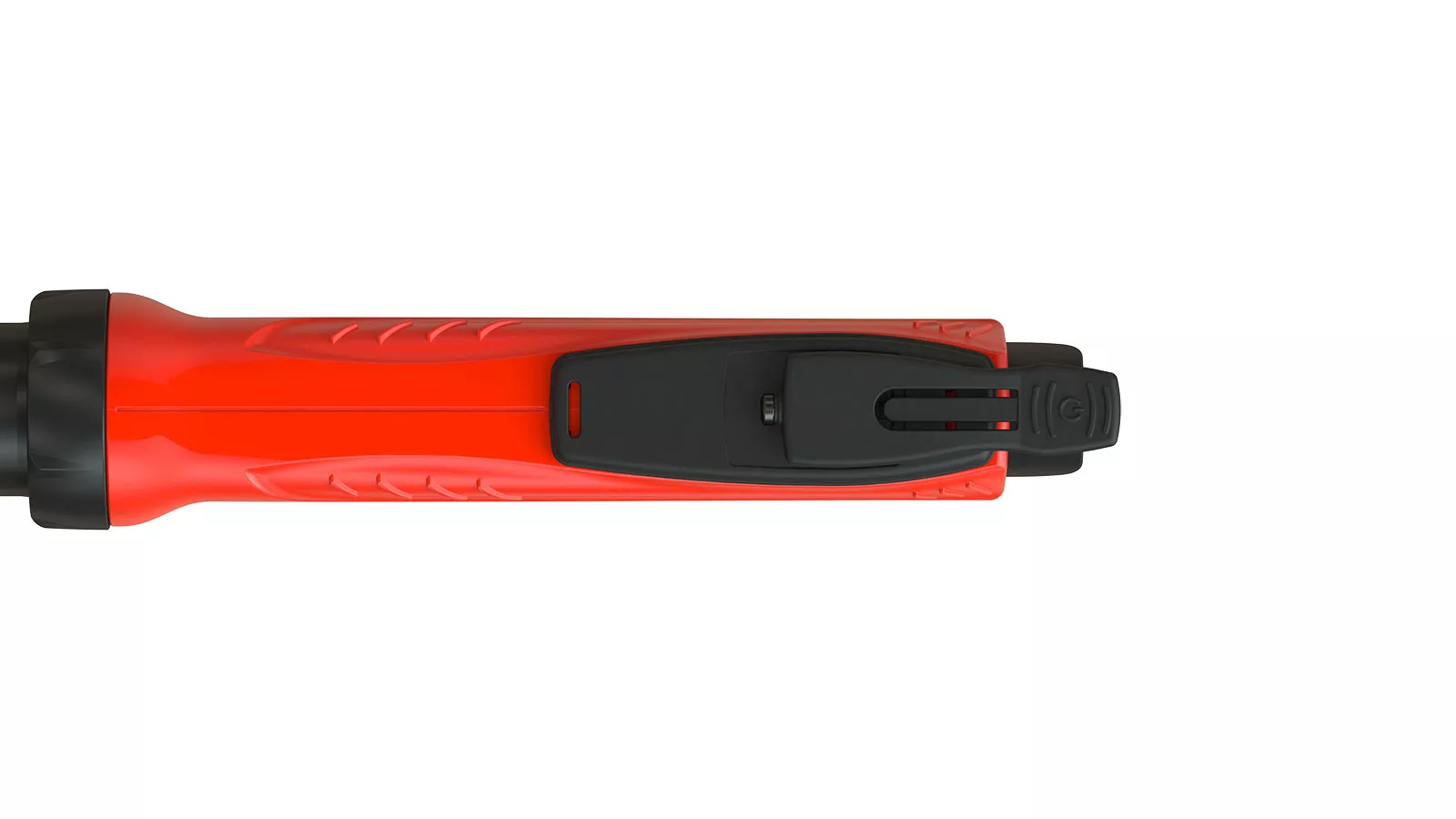

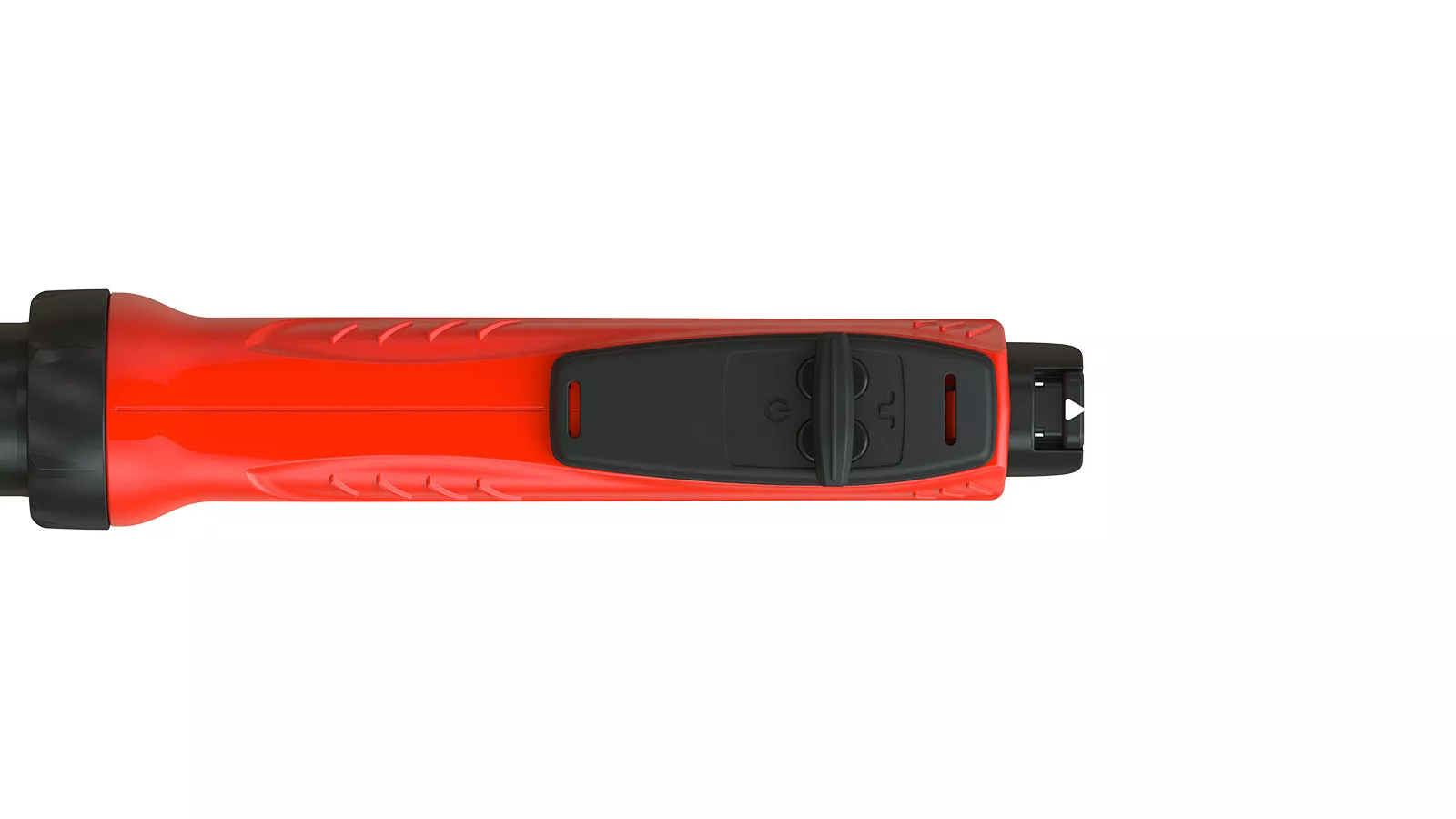

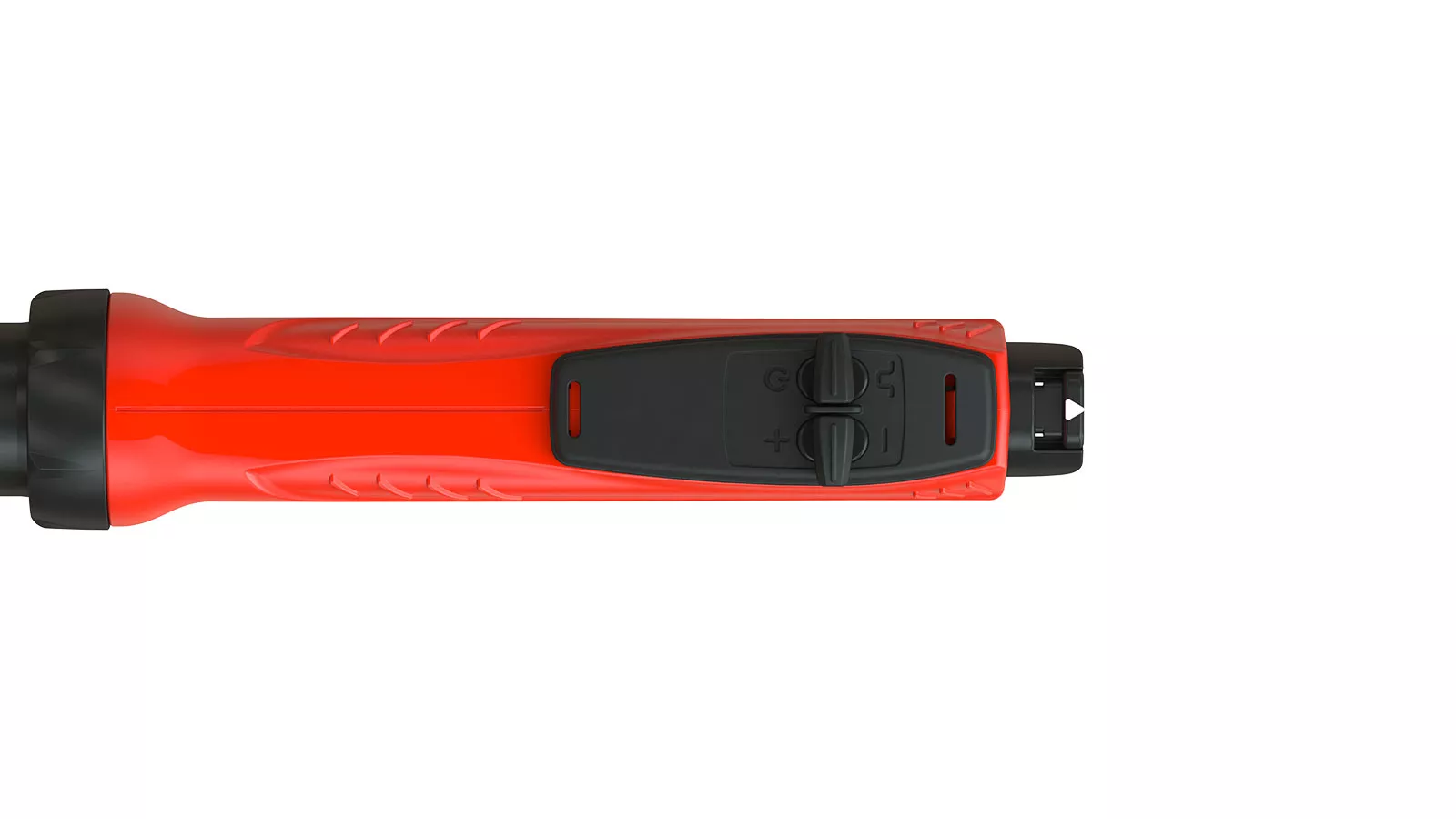

Small Handle
The Small Handle is a convenient smaller alternative to the standard version. It is particularly well-suited to difficult-to-access weld locations in less power-intensive applications and is the more ergonomic choice for smaller hands. Despite its smaller size, it still offers a variety of different control options too.
Optimum accessibility
Optimized for professional use

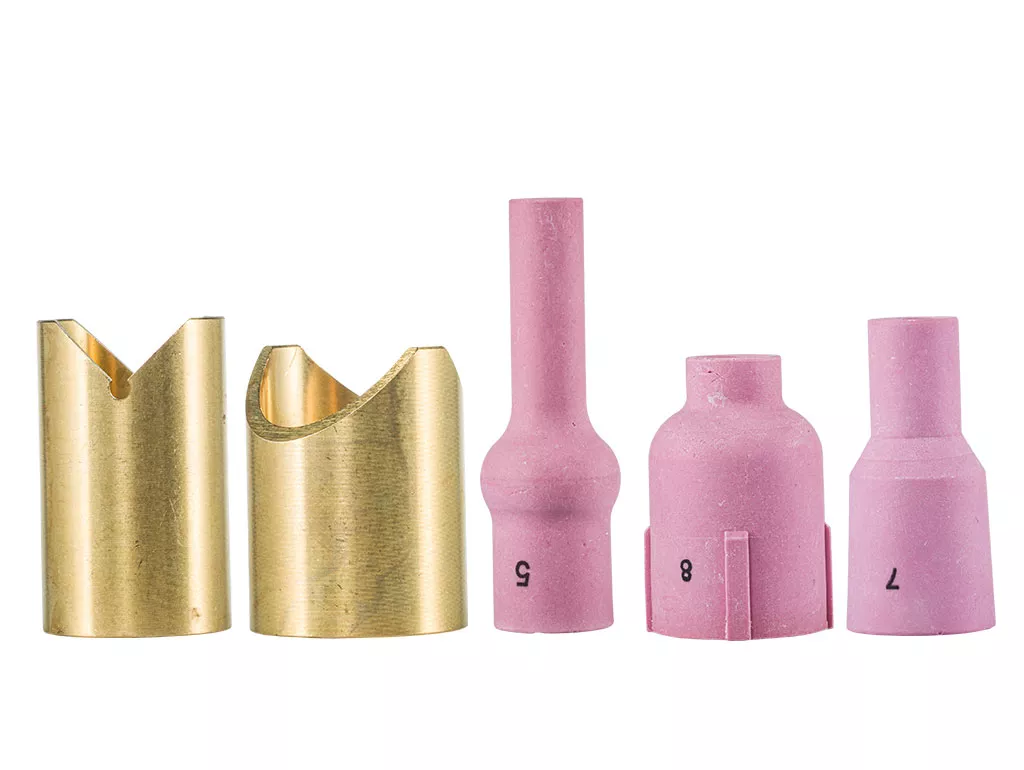

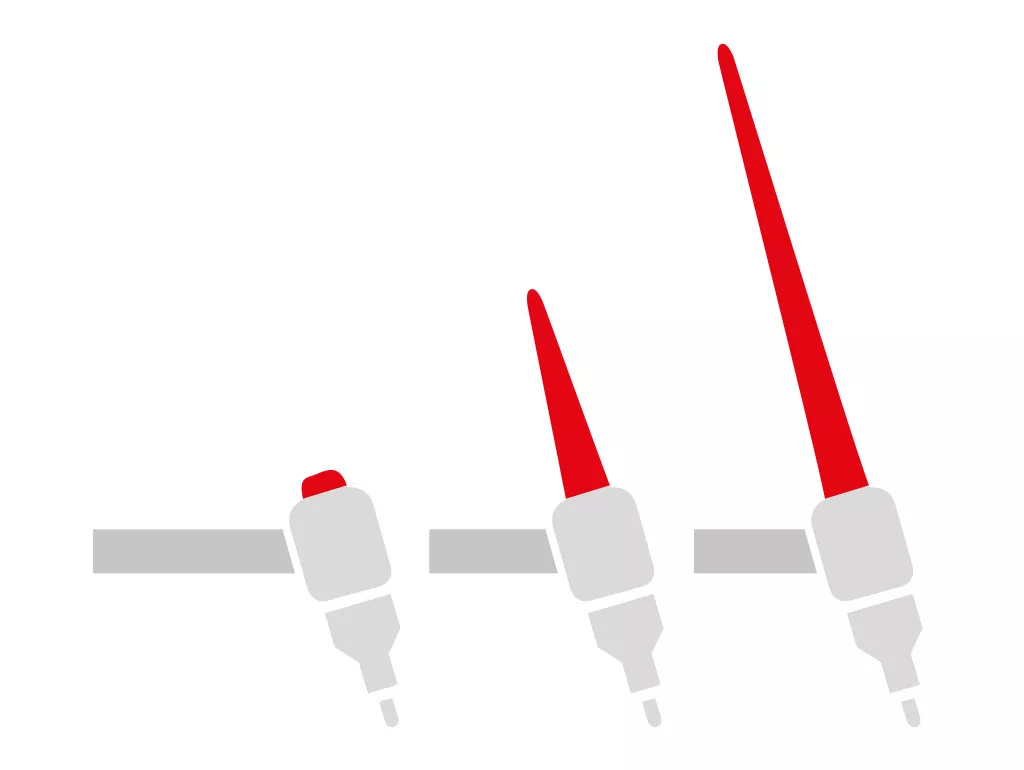

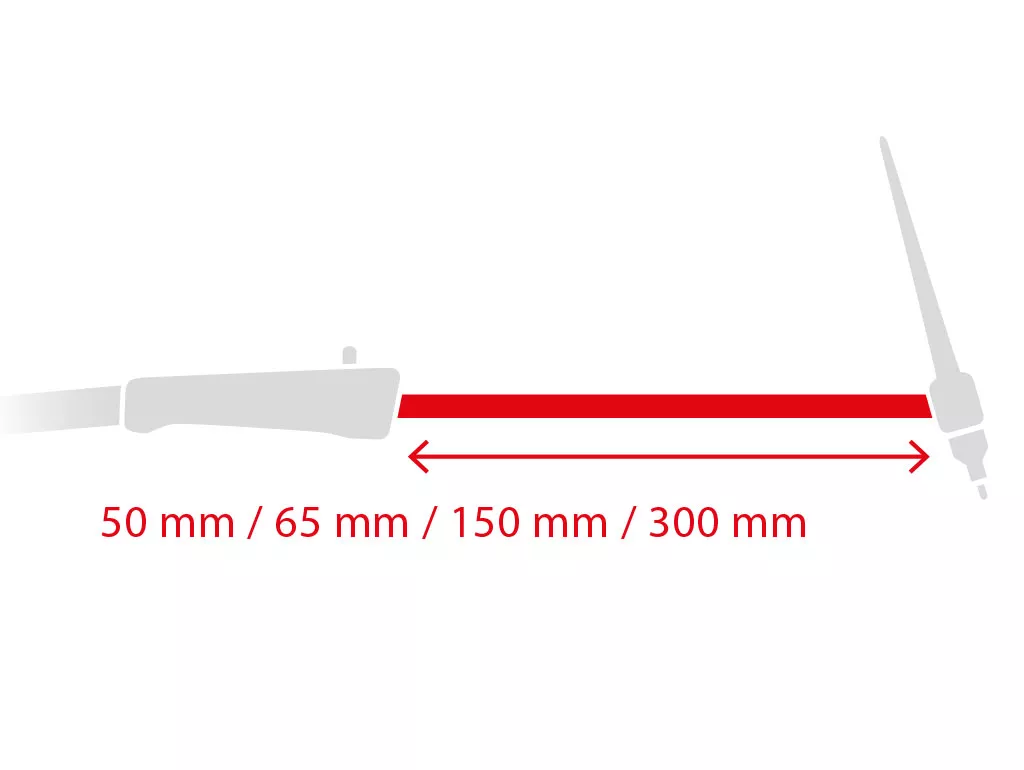

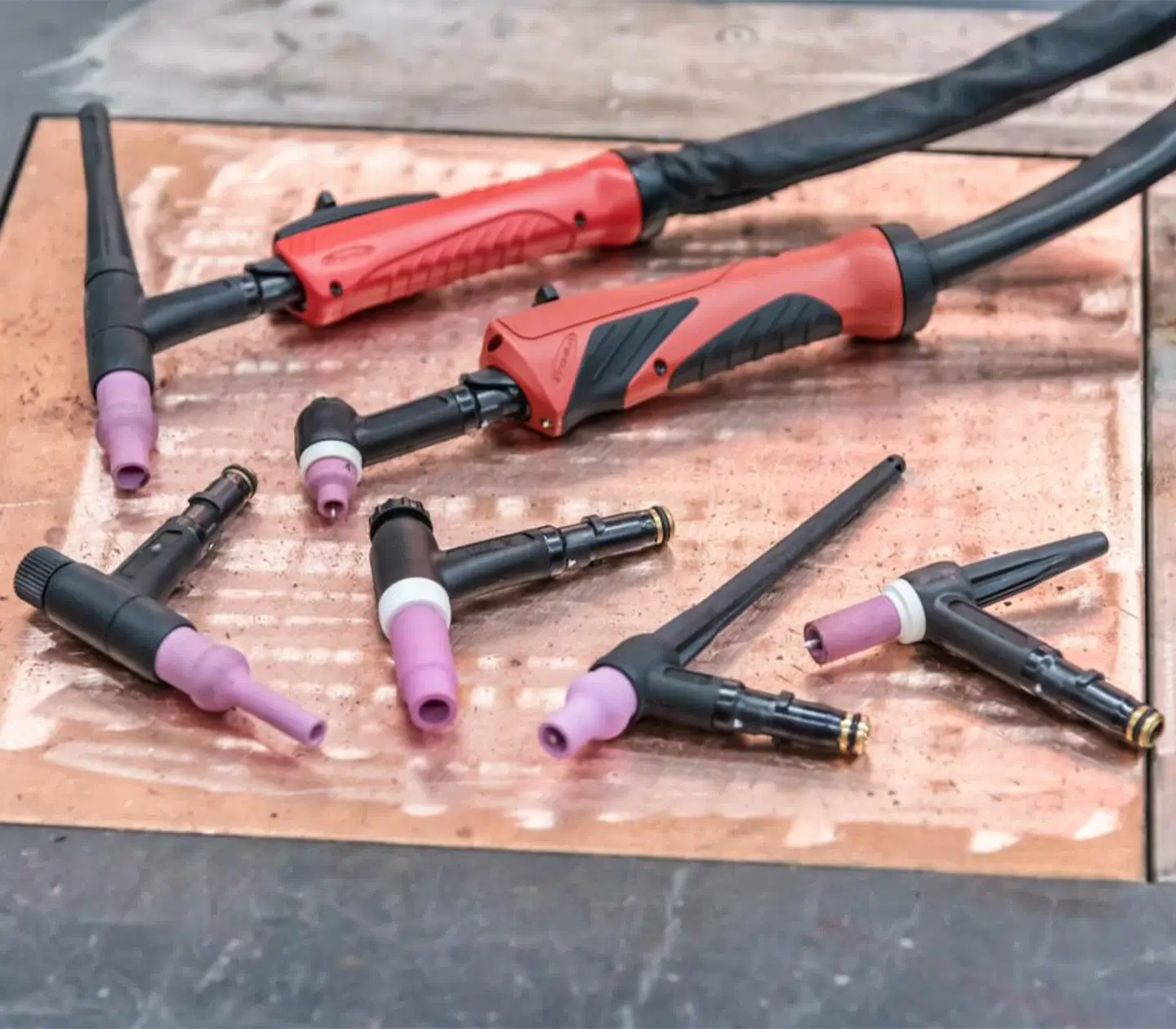

Flexible welding made easy: the modular construction of the new TIG Multilock welding torch allows the torch to be customized to suit practically any customer requirement. Multiple torch cap sizes as well as a rotatable torch body available in several lengths help overcome challenging accessibility situations and make handling the torch a breeze.
Multilock
for fast torch body changes
-
Patented interface
The torch body can be changed quickly, easily and without the need for tools – no matter what the welding task. -

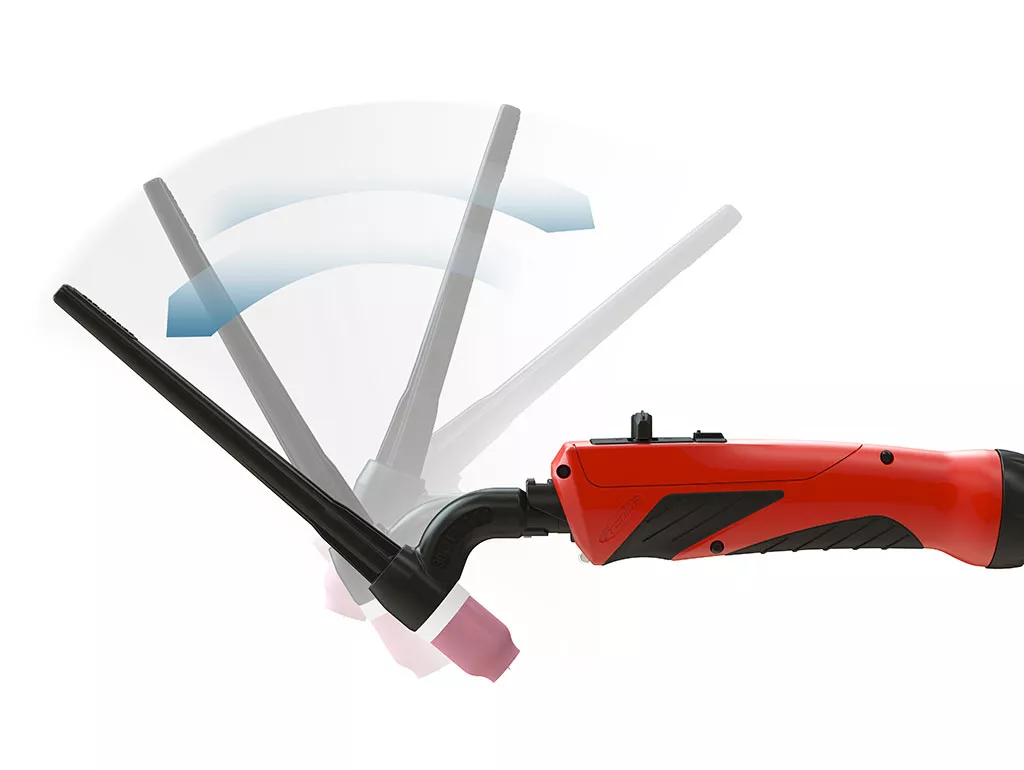

360°
The torch body can be turned through 360° for an optimum welding position every time.
The welding torch in detail
System design
Welding Package: TIG Dynamic Wire
Active wire control in TIG cold wire welding:
The innovative advantage of Fronius TIG DynamicWire, when compared to a conventional continuous wire feed in cold wire systems, lies in its automatic self-regulation.
The power source actively adjusts the wire speed to the welding behavior, torch position, and current conditions, even compensating automatically for component tolerances of up to 30%.
Gas lens option
Better gas shield
- Turbulence-free gas flow
- Optimum weld seam quality
- Gas savings of 1-2 l/min
- Low oxidation in high alloymaterials
Options and accessories
Extension hosepack
Standard hosepacks can be extended by 10 meters with this option. The connection point is packed in a compact and robust pouch to prevent contamination and snagging.
Locking device multilock coupling
In order to prevent improper use of the Multilock System, hosepacks can be optionally equipped with a release lock.
No trigger
This option offers advantages when used with a foot controller or the touch HF ignition (the high-frequency ignition starts after the workpiece is touched by the electrode).
Button operation
Hosepacks can be converted to pushbutton operation for the digital device generation. Functions include start and end of welding as well as intermediate lowering.
Rapid electrode change with Tungsten Fast Clamp (TFC)
With this system, you can change the tungsten electrode quickly and effortlessly.
The touch of a button is all it takes to release and re-clamp the electrode—and all in just a few seconds, ensuring outstanding efficiency and uninterrupted work with no unnecessary downtime.
It is also possible to retrofit the TFC system to your existing TIG welding torches.
