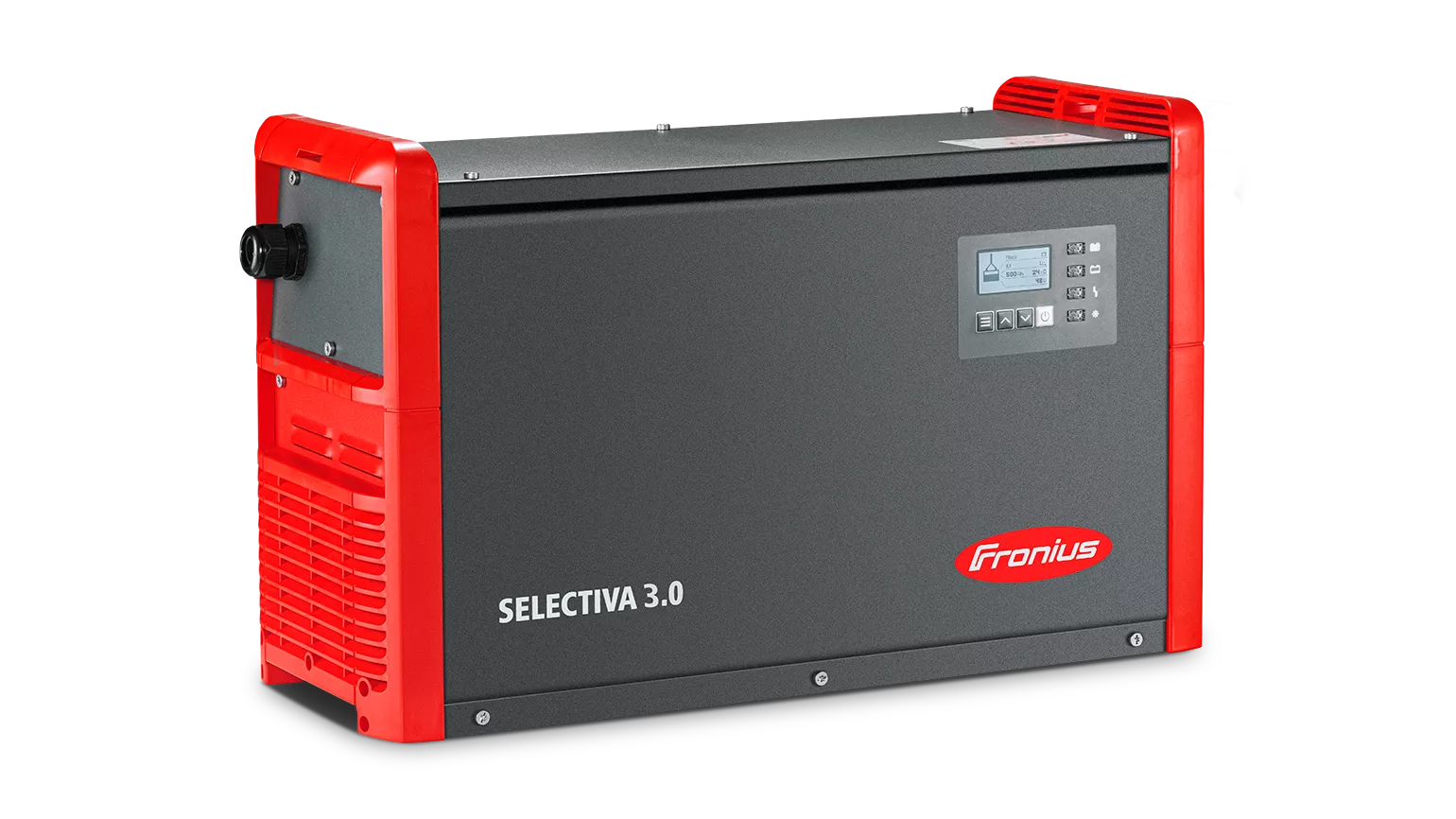

Selectiva 3.0
Lead-acid battery chargers
Intelligent battery charging in intralogistics
With the Selectiva 3.0 charger family, Fronius offers one of the most efficient and advanced solutions on the market for charging lead-acid batteries.Benefit from our innovative battery charging solutions which not only reduces costs, energy usage and CO2 savings, but also offers our customers sustainable benefits.
Convincing quality
Fronius products have an exceptionally long life expectancy and are produced by the highest quality standards. This not only impresses us, but also our customers for more than 75 years. Our intelligent and future-proof products are also offered with an impressive five year product guarantee*.
Flexible and adaptive
We are aware that your everyday business is often very demanding. That is why our Selectiva 3.0 chargers are modularly designed, lightweight and easy to move to the required location, making charging the most common lead acid, batteries possible. Your advantage? A charger that adapts flexibly to your requirements and the different tensions and capacities of your batteries
Your Benefits
Feel the difference
With the Selectiva 3.0, you benefit from an intelligent and flexible charging technology that is optimally tailored to your needs, depending on the application. We support you as an independent energy expert to supply tailor-made charging solutions. We are at your service from advice and analysis to planning and implementation.
What is new?
Power Charging
With the Power Charging option it is possible to increase a low lead battery level with help of rapid or opportunity charging within a short amount of time.
PzQ / PsQ characteristic
Especially in heavy-duty applications, PzQ or PsQ batteries are often used. In order to charge them optimally, our battery chargers have a specially tuned characteristic curve. This can also be combined with the Power Charging option.
CSM characteristic
The CSM characteristic enables this type of battery to be optimally charged and can be combined with the Power Charging option.
Lead crystal characteristic
The Lead Crystal function contains a special characteristic for optimally charging these maintenance-free batteries.
Functions, Options and Charging characteristics
PZS characteristic
Due to the fact that it can be used universally, the PzS battery is the most widespread traction cell with more than 75% market share. The Ri-charging process has been specially developed and adapted for this technology.PzQ / PsQ characteristic
Especially in heavy-duty applications, PzQ or PsQ batteries are often used. In order to charge them optimally, our battery chargers have a specially tuned characteristic curve. This can also be combined with the Power Charging option.CSM characteristic
The CSM characteristic enables this type of battery to be optimally charged and can be combined with the Power Charging option.Lead crystal characteristic
The Lead Crystal function contains a special characteristic for optimally charging these maintenance-free batteries.Power Charging
With the Power Charging option it is possible to increase a low lead battery level with help of rapid or opportunity charging within a short amount of time.
Calendar function
This enables time-controlled charging,making it possible to exploit cheaper energy rates and accommodate individual shift patterns.
OPPORTUNITY CHARGING AND RAPID CHARGING CHARACTERISTIC
You can set a special characteristic for opportunity charging and rapid charging at the push of a button.
DEEP DISCHARGE CHARACTERISTIC
This special characteristic makes it possible for a deeply discharged batteryto be completely recharged.
No Monday morning syndrome
A programmable, time-controlled equalising charge ensures that a full charge is available over the weekend and after public holidays.
VISUALISATION OF THE COOLEST BATTERY
A blue LED indicator signals a fullycharged, cooled and usable battery.
Automatic battery voltage detection
The intelligent battery charger automatically detects the battery voltage as soon as it is connected.
Refresh characteristic
Using the Refresh characteristic raisesthe performance of a weak battery.
Current-peak avoidance
Low power consumption and adjustable charging start times decreases the required connection load and peak load.
Cold Logistics
The Cold Logistics option increases the performance of the cooled battery by increasing the temperature. The characteristic is adapted in such a way that the battery is fed with a higher amount of energy in order to warm it.Power Charging
With the Power Charging option it is possible to increase a low lead battery level with help of rapid or opportunity charging within a short amount of time.
Air-Puls (ECS)
The pneumatic electrolyte circulation system (ECS) guarantees a fast and extremely gentle charge for your traction batteries.
Relay board, option box
Error messages and additional features such as the Aquamatic control function, external air pump and refill indicator can be displayed.
TEMPERATURE-CONTROLLED CHARGING
This adapts the charging voltage, and therefore the output, according to the temperature of the battery, thereby providing sustainable protection and increasing the battery‘s service life.
External start/stop
If the charging lead is disconnected during charging, the external start/stopfunction prevents sparking.
Common error
The common error function can be used to communicate error messages to thirdparty systems quickly and easily.
LED strip, charging status indication
Indicates from a distance which traction battery is being charged, is already fully charged, or is cooled down and ready for use.
Air filter
This provides effective protection against dirt for the interior of your battery charger and avoids short circuits.
Remote control system
Ideal for controlling and monitoring battery chargers even over larger distances. The user interface can be placed up to 30 m away from the device.
