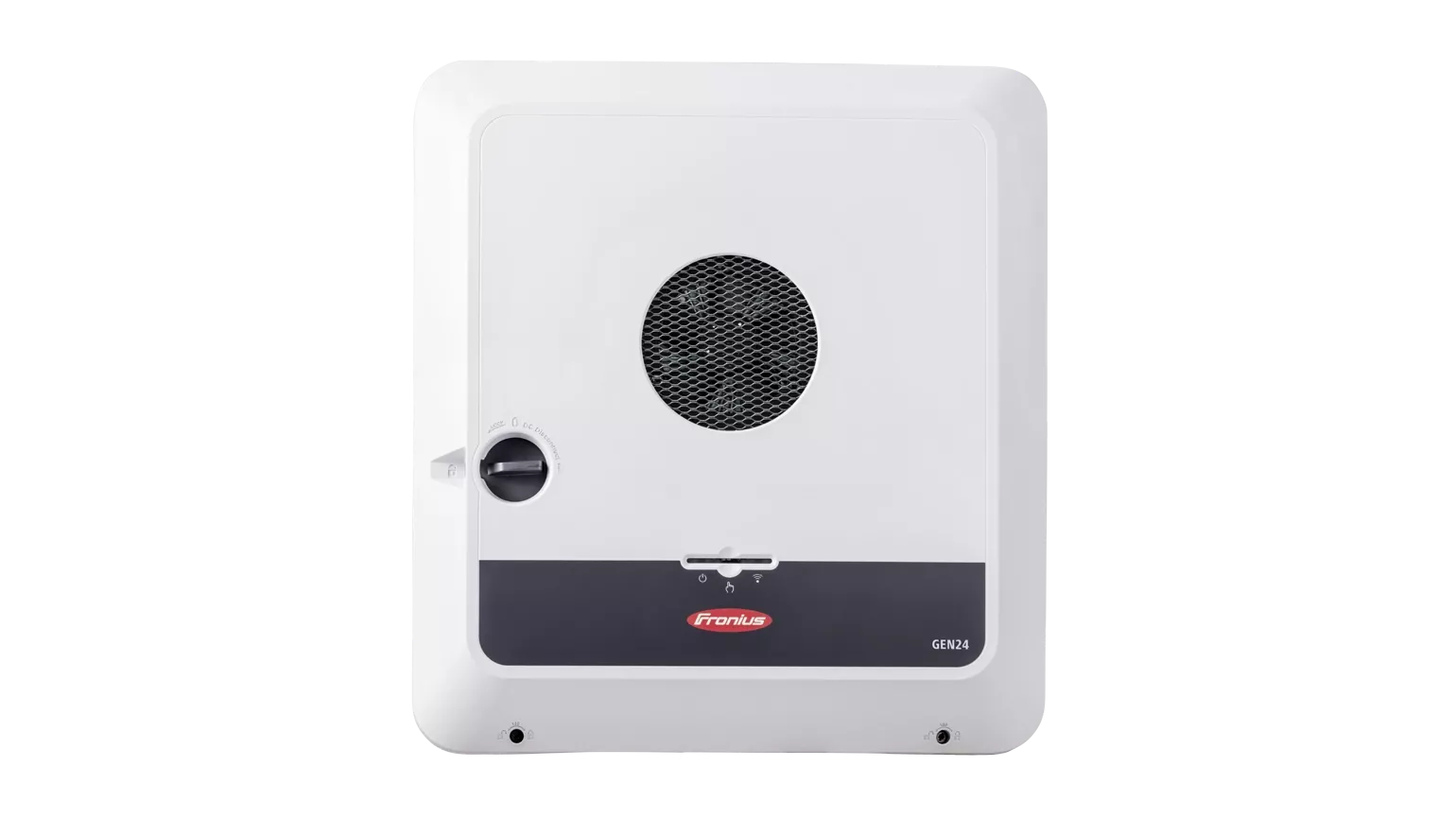

Fronius GEN24 & GEN24 Plus
Designed to empower.
The string inverter for residential PV systems with integrated backup power
The Fronius GEN24 maximizes energy production and performance. Innovative software, high efficiency and advanced functionality make this inverter optimal for homeowners looking to start or enhance their energy independence. Even in shaded areas, the Fronius GEN24 delivers maximum yields.
Even more assurance for self-sufficient individuals: Equipped with PV Point, the Fronius GEN24 offers a integrated backup power function that supplies connected devices with reliable solar power when the sun is shining.
The Fronius GEN24 Plus hybrid inverter even enables a battery storage system to be used, providing an increased energy for crucial and entertainment loads, even at night.
- Flexibility for greater potential: The SuperFlex Design ensures easy configuration even on complex roofs.
- Built-in longevity: The Active Cooling Technology keeps the power electronics of Fronius inverters at a low temperature, thus ensuring a long service life.
- Made in Europe
| Fronius GEN24
integrated basic backup power function
|
| Fronius GEN24 Plus
two backup power options/battery connection
|
Available now - the Fronius GEN24 in your area
Join us at one of our stops throughout Canada and experience the future of solar energy supply!
Get ready to explore the world of sustainable solar energy production with Fronius and find out how you can boost your business with us. At the roadshow we will unveil our latest innovation: the Fronius GEN24.
The string inverter maximizes energy production and performance. Innovative software, high efficiency, and advanced functionality make the Fronius GEN24 ideal for homeowners enhancing their energy independence.
Powerful features for increased performance
Integrated shade management
Highest yields even in shade: That's what the Fronius GEN24 achieves with the Dynamic Peak Manager. The intelligent algorithm optimizes PV yields at the string level, eliminating the need for expensive additional module level optimization components.
Backup power for your needs
Energy supply needs security. The Fronius GEN24 therefore offers an integrated basic backup power supply. Connected devices up to 3 kW are supplied with backup power via the PV Point - a protected outlet - as long as the sun is shining.
The Fronius GEN24 Plus allows users to choose between two backup power options – a basic backup power supply with the PV Point, which supplies selected electrical consumers via a protected socket, or an Essential Backup* power function which can supply a wide range of household items, such as refrigerators, water pumps, lighting systems or an internet router.
*For the Essential Backup, additional external components are required for grid separation. A Fronius solution (Essential Backup Load Unit) will be
available in Q2 2025.
Support throughout
From initial planning through commissioning to future maintenance: our digital solutions and services provide comprehensive support for the Fronius GEN24 and GEN24 Plus. And to make your life as an installer even easier, quick-release screws and push-in spring terminals speed up the installation process.
Fronius GEN24 & GEN24 Plus
The Fronius GEN24 and Fronius GEN24 Plus boast a wide range of features that support a sustainable, cost-efficient energy supply. Discover the key features for installers and their customers at the click of a button.Fronius UP.storage
For those who still can't decide: the software upgrade Fronius UP.storage* for the Fronius GEN24 allows a battery connection and thus the full backup power function** to be retrofitted to an existing device at any time.
* Available in selected countries.
** The Full Backup power supply function is not available for the Fronius Symo GEN24 3.0–5.0 Plus.
Solar.start – the app by pros for pros
Configure Fronius inverters in just a few minutes: Solar.start makes it easy for you.
Quick and easy commissioning in just three steps
- Network settings
- Product configuration
- Integration into the Fronius Solar.web monitoring platform
- Quick access to the web interface for additional settings and functions
- Full warranty coverage when you register the inverter on Solar.web
- Link to useful platforms such as Solar.web and Solar.SOS
Sustainable right from the start
24 hours of sun for all
Our driving force has always been the vision of accessible solar energy, day or night, regardless of the season. With the Fronius GEN24, we move another step closer to achieving our mission.
Thanks for being a part of it!
Technical data
| Technical data |
Primo GEN24 |
|
| Single-phase | single-phase 208-240 V | |
| Power classes | 3.8 / 5 / 6 kW | 7.7 / 10 kW |
| MPP-Tracker | 2 | |
| Protection class | Type 4X | |
| Dimensions (h x w x d) in inch |
20.4 x 18.7 x 6.5 | 23.0 x 20.8 x 7.1 |
| Weight | 35.65 lbs | 49.05 lbs |
| DC input voltage (Udc min - Udc max) |
65 V - 600 V | |
| Battery voltage range | 150 - 455 V | |
